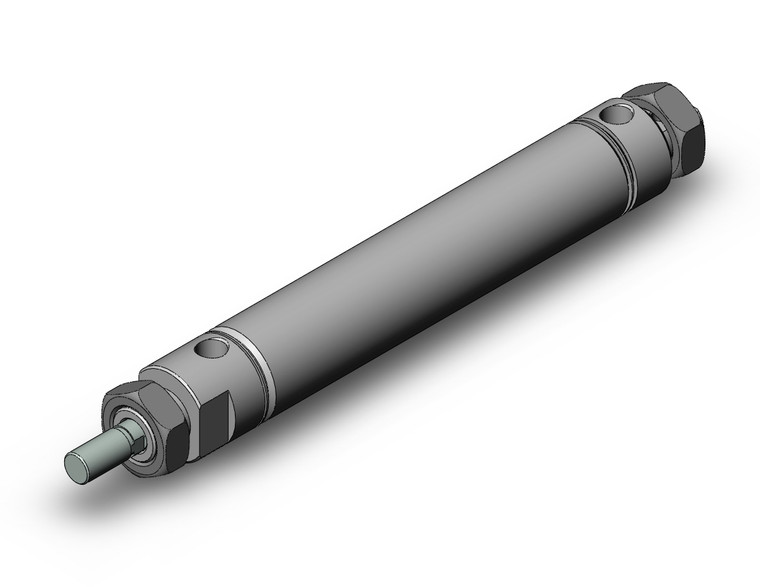

SMC NCDME125-0500 Ncm, Air Cylinder
SMC
$69.05
NC(D)M, Stainless Steel Cylinder, Double Acting, Single Rod, Standard
Standard double acting single rod version of our NCM stainless steel cylinders. A wear ring extends the seal life and a bronze rod bushing is standard on all bore sizes. The NCM is available in 3 mounting styles (front nose, double end and rear pivot). The NCM is auto-switch capable without any change in cylinder dimension. Bore sizes range from 7/16 to 2 and standard strokes from 1/2 to 12 .
- Double acting single rod- Bore sizes (inch): 7/16, 9/16, 3/4, 7/8, 1 1/16,1 1/4, 1 1/2, 2
- Mounts: nose, rear, end, rod, block
- Variety of switches and lead wire lengths
- Optional Rod Boot
- Magnet:
- D (Built-in)
- Mounting:
- E (Double End)
- Bore Size:
- 125 (1 1/4")
- Stroke:
- 0500 (5")
- Cushion:
- No Cushion
- Rod Boot:
- Without Boot
- Auto Switch:
- No Switch
- Lead Wire or Prewired Connector:
- 0.5m (Or None in the Case of No Switch)
- Number:
- 2 pcs. (Or None in the Case of No Switch)
