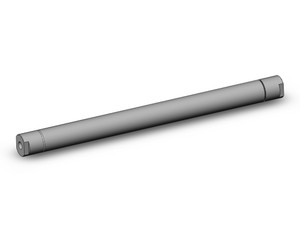

SMC NCMB106-1200 Ncm, Air Cylinder
SMC
$53.15
NC(D)M, Stainless Steel Cylinder, Double Acting, Single Rod, Standard
Standard double acting single rod version of our NCM stainless steel cylinders. A wear ring extends the seal life and a bronze rod bushing is standard on all bore sizes. The NCM is available in 3 mounting styles (front nose, double end and rear pivot). The NCM is auto-switch capable without any change in cylinder dimension. Bore sizes range from 7/16 to 2 and standard strokes from 1/2 to 12 .
- Double acting single rod- Bore sizes (inch): 7/16, 9/16, 3/4, 7/8, 1 1/16,1 1/4, 1 1/2, 2
- Mounts: nose, rear, end, rod, block
- Variety of switches and lead wire lengths
- Optional Rod Boot
- Bore044~088:
- SS)
- Stainless Rod:
- Bore106~200:Carbon Steel
- Speed:
- 2 to 20 in/sec
- Special Temperature:
- 40?? to 140??F
- Rod End Modifications:
- Standard Rod End
- Auto Switch:
- No Switch
- Cushion:
- No Cushion
- Stroke:
- 1200
- Bore Size:
- 1 1/16"
- Mounting:
- Basic
