SMC

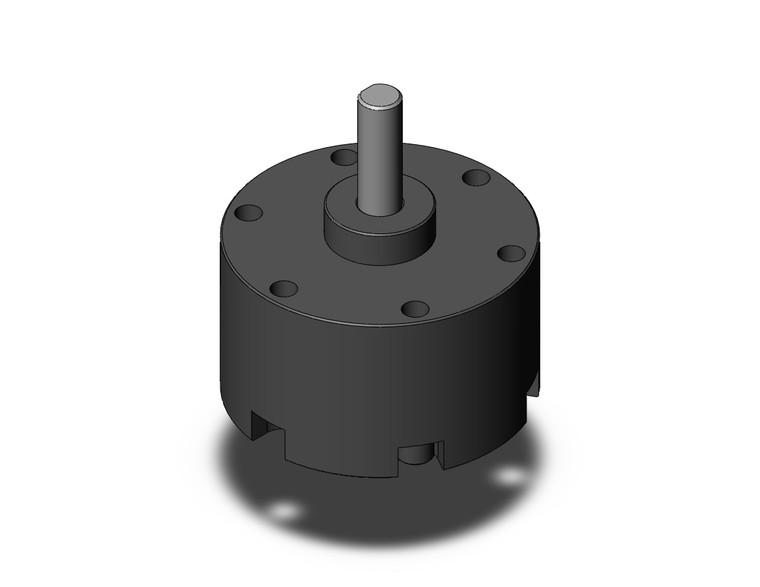

SMC NCRB1BW15-90SE Rotary Actuator

(No reviews yet) Write a Review
SKU:
NCRB1BW15-90SE
MPN:
NCRB1BW15-90SE
Condition:
New
Magnet:
None
Mounting:
B (Basic)
Angle Adjusting Unit:
None
Body Size:
15mm
Rotation Angle:
90S (Rotation Angle= 90
Vane Style:
Single)
Port:
E (Axial Direction)
Auto Switch:
No Switch
Number:
2 pcs. (Or None in the Case of No Switch)
$90.10

Description

NC(D)RB1*W10~30, Rotary Actuator, Vane Style

The NCRB single vane, double shaft style rotary actuator is available in 7 sizes (10-30mm). Rotation angles of up to 270 is possible for the entire series. The NCRB series offers smooth, step-free operation and long life expectancies in rugged service applications. Optional auto switches are available.
-

- Light weight and compact size
- High reliability and long life
- Mountable with auto switch
- 2 porting variations (top and side)
- Ball bearing supported shaft
-

Series Catalog

AutoCAD File
