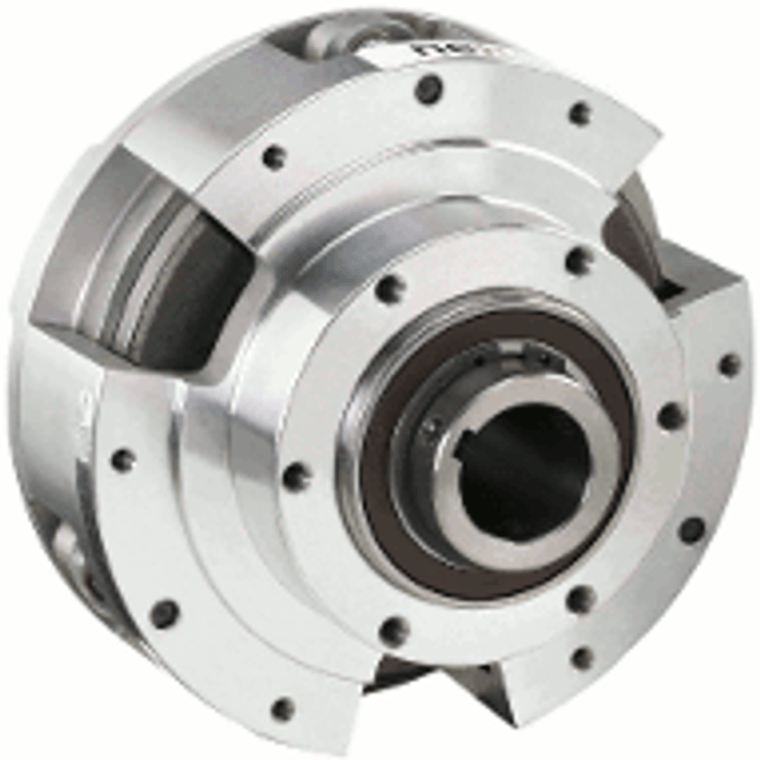

Nexen 800302 Air Engaged Shaft End Mount Clutch
NexenAir Engaged Shaft End Mount Clutch
SEM-600A*ELEMENT,1.375 BORE
Air Engaged, Straight Bore, Shaft End Mount, Rotary Air Union, Pilot Output
Pilot Mount Clutches Accept Customer Supplied Pulleys Or Sprockets, Or The Nexen 5.6 in OD 3 Groove 3V Sheave Under Accessories To The Left
Length=6.42 in; Outer Diameter=7.25 in; Pilot Size=3.150 in; Bore Size=1.375 in, Machined Bore with Keyway; Output Bolt Circle=3.968 in; Output Bolt Hole Size=6 0.312-18 in, Holes @ 60°
Product Features=Air Engaged, Straight Bore, Shaft End Mount, Rotary Air Union, Pilot Output
- Weight:
- 15.5 lbs
- Output Type:
- Pilot
- Min Sprocket Size:
- 35/40T, 40/30T, 50/25T, 60/21T
- Mounting Style:
- Shaft
- Engagement Method:
- Air
- Release Method:
- Spring
- Max Speed:
- 3600 RPM
- Drive Inertia:
- 41.65 lbin²
- Shaft Inertia:
- 16.77 lbin²
- Open Or Enclosed Design:
- Open
- Min Ambient Temperature:
- 32 °F
- Max Ambient Temperature:
- 150 °F
- Bore Details:
- Straight
- Max Static Clutch Torque:
- 770 inlb
- Max Dynamic Torque:
- 655 inlb
- Clutch Facing Type:
- Standard Coefficient
- Clutch Facing Edge Color Code:
- Red
- Approximate Clutch Facing Life:
- 230 hphr
- Clutch Facing Effective Area:
- 18.62 in²
- Max Clutch Continuous Thermal Dissipation:
- 0.53 hp
- Clutch Heat Sink Capacity:
- 34413 ftlb
- Clutch Peak Thermal Input Rate:
- 16.80 hp
- Max Operating Pressure:
- 80 psi
- Min Engagement Pressure:
- 5 psi
- Inlet Size:
- 0.125 NPT
- Bore Style:
- Machined Bore with Keyway
- Clutch Air Chamber Volume When New:
- 0.628 in³
- Clutch Air Chamber Volume When Worn Out:
- 1.797 in³
- Output Shaft Style:
- None
