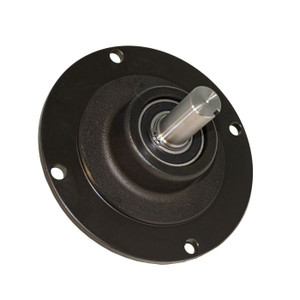

Nexen 801499 Modular Clutch Input Unit
NexenModular Clutch Input Unit
FMIU-130-24*INPUT UNIT,24 MM,NP
Application Considerations: For Adding An Input Shaft To The Input Of FM C-Faced Clutches And/Or Brakes Input Units Allow For Free-Standing Or Reducer Input Applications
Input Shaft Diameter=24 mm; Bore Size=Shaft with Keyway; Output Shaft Diameter=24 mm; Output Bore Diameter=24 mm; Input Pilot Depth=N/A; Output Pilot Diameter=130 mm; Output Pilot Height=3.5 mm; Output Bolt Circle=165 mm; Output Bolt Hole Size=12 mm
- Weight:
- 7 lbs
- Max Speed:
- 1500 RPM
- Overhung Load Capacity:
- N/A, Ask Nexen
- Primary Finish:
- Nickel Plated
- CE Certified:
- CE
- RoHS Compliant:
- RoHS
- Input Frame Size:
- IEC 90
- Bore Details:
- Straight Shaft/Shaft
- Bore Style:
- Shaft with Keyway
- Materials Of Construction:
- Nickel Plated
- Output Shaft Style:
- Shaft with Keyway
- QN-QUOTE-REQUEST:
- true
