Description

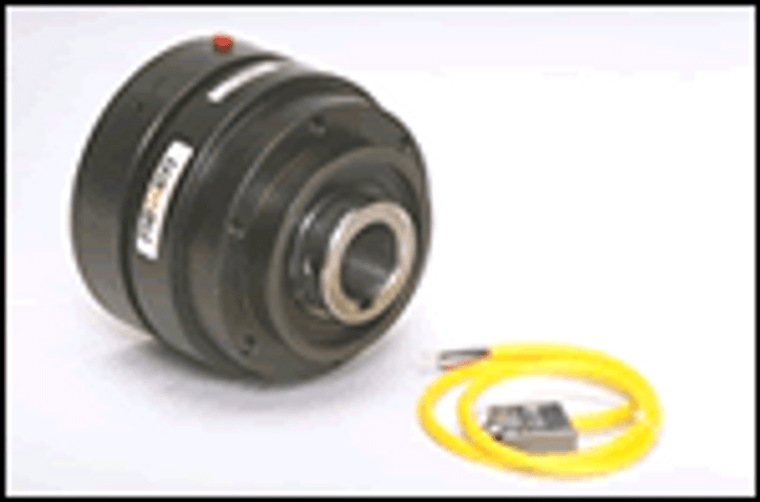

TL-A Torque Limiters TL40A 1.375 BORE,AIR,SPCL
View AllClose
Features: | Now Improved With Turck Proximity Sensor (Click User Manual In Left Column For Installation Details) |
Comments: | Positional Reengagement Torque Is Approximately 10% Of Clutch Torque Being Generated Based On Applied Air Pressure |
Open Or Enclosed Design: | Open |
Drive Arrangement: | Pilot Mount |
Bore Size: | 1.375 in. |
Bore Style: | Straight |
Maximum Static Clutch Torque: | 4190 inlbs |
Minimum Static Clutch Torque: | 900 inlbs |
Backlash: | 0.28° |
Number Of Engagement Positions: | 1 @ 360° |
Minimum Sprocket Size: | "40/40T, 50/30T, 60/26T, 80/20T" |
Drive Inertia: | 54.72 lbin² |
Shaft Inertia: | 25.20 lbin² |
Max Rpm: | 1350 |
Sensor Type: | Proximity Sensor |
Actuation/Return: | Air/Spring |
Port Size: | 0.125 NPT |
Hose Length: | 8.25 in. |
Maximum Operating Pressure: | 80 psi |
Minimum Engagement Pressure: | 15 psi |
Temperature Range: | 32 - 150 °F |
Clutch Air Chamber Volume When New: | 1.560 in³ |
Cable Length: | 6.5 ft |
Ratings: | "CE, And RoHS" |
Finish: | "Bare Machined Aluminum Air Chamber, Black Oxide Pilot" |
Restrictions: | Consult Nexen For Engagement at Differential Speeds |
Shipping Weight: | 30.0 LB |
