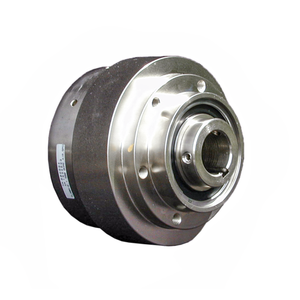

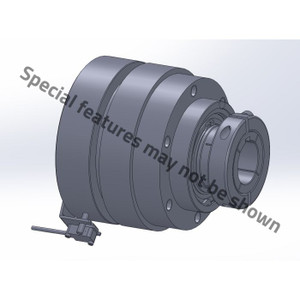

Nexen 802902 Air Engaged Enclosed Torque Limiter
NexenAir Engaged Enclosed Torque Limiter
TL20A-E*0.875 BORE,AIR
Air Engaged, Shaft Mount, Straight Bore, Single Position, Enclosed
Application Considerations: Now Improved With Turck Proximity Sensor (Click User Manual In Left Column For Installation Details) Positional Reengagement Torque Is Approximately 10% Of Clutch Torque Being Generated Based On Applied Air Pressure
Length=4.83 in; Outer Diameter=5.03 in; Pilot Size=2.875 in; Bore Size=0.875 in, Machined Bore with Keyway; Input Keyway=0.188 in Square; Output Bolt Circle=3.562 in; Output Bolt Hole Size=6 0.313-18 in, Holes @ 60°
Product Features=Air Engaged, Shaft Mount, Straight Bore, Single Position, Enclosed; Restrictions=Consult Nexen For Engagement at Differential Speeds
- Weight:
- 14.6 lbs
- Output Type:
- Pilot
- Min Sprocket Size:
- 35/40T, 40/30T, 50/24T, 60/21T
- Engagement Method:
- Air
- Release Method:
- Spring
- Number Of Engagement Positions:
- 1, @ 360°
- Max Speed:
- 1650 RPM
- Drive Inertia:
- 13.54 lbin²
- Shaft Inertia:
- 6.05 lbin²
- Backlash:
- 0.38 °
- Primary Finish:
- Nickel Plated
- Min Ambient Temperature:
- 32 °F
- Max Ambient Temperature:
- 150 °F
- CE Certified:
- CE
- RoHS Compliant:
- RoHS
- IEC IP Rating:
- IP55
- Bore Details:
- Straight
- Input Shaft Securement:
- 2 Set Screws at 90 Degrees, Both Ends
- Max Operating Pressure:
- 80 psi
- Min Engagement Pressure:
- 15 psi
- Inlet Size:
- 0.125 NPT
- Hose Length:
- 8.25 in
- Cable Length:
- 2 m
- Number of Sensors:
- 1
- Housing Type:
- Enclosed
- Bore Style:
- Machined Bore with Keyway
- Clutch Air Chamber Volume When New:
- 0.780 in³
- Materials Of Construction:
- Nickel Plated
- Sensor Function:
- Disengagement
- Sensor 1 Function:
- Disengagement
- Sensor 1 Output:
- Normally Open PNP
- Sensor 1 Type:
- Inductive Proximity
- Min Disengagement Torque:
- 210 inlb
- Max Disengagement Torque:
- 860 inlb
