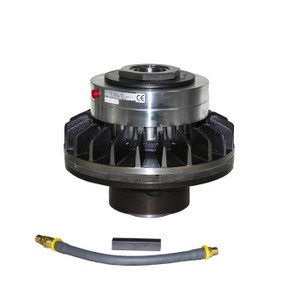

Nexen 803900 Air Engaged Through Shaft Mount Clutch
NexenAir Engaged Through Shaft Mount Clutch
LW*1.125,2-3V GRV,04.50 OD
Air Engaged, Keyed, Straight Bore, Shaft Mount
Configuration Notes: Consider Pt# 805210, Air Champ 2, That Is A Direct Replacement Upgrade For This Product Can Be Configured As A DRIVING Shaft Mounted Clutch-Brake With Disc And Caliper Listed Under Accessories In Left Column
Length=5.56 in; Outer Diameter=6.06 in; Input Bore Min Shaft Insertion=2.50 in, From Pilot End Full From Air Chamber End; Bore Size=1.125 in, Machined Bore with Keyway, 0.625-1.000 in with Optional Adapter Bushings; Input Keyway=0.250 x 0.250 x 1.375L in
Product Features=Air Engaged, Keyed, Straight Bore, Shaft Mount; Restrictions=This Clutches Bore Can Be Reduced With The Bushings Found In Accessories To The Left
- Weight:
- 14.78 lbs
- Output Type:
- V-Belt Pulley, 2-3V, 4.50 in OD Sheave
- Mounting Style:
- Shaft
- Engagement Method:
- Air
- Release Method:
- Spring
- Max Speed:
- 1800 RPM
- Drive Inertia:
- 27.83 lbin²
- Shaft Inertia:
- 16.13 lbin²
- Backlash:
- 0.44 °
- Open Or Enclosed Design:
- Open
- Primary Finish:
- Black Oxide
- Min Ambient Temperature:
- 32 °F
- Max Ambient Temperature:
- 150 °F
- CE Certified:
- CE
- RoHS Compliant:
- RoHS
- Bore Details:
- Straight
- Max Static Clutch Torque:
- 370 inlb
- Clutch Facing Type:
- Standard Coefficient
- Clutch Facing Edge Color Code:
- Red
- Approximate Clutch Facing Life:
- 572 hphr
- Clutch Facing Effective Area:
- 18.62 in²
- Max Clutch Continuous Thermal Dissipation:
- 0.40 hp
- Clutch Heat Sink Capacity:
- 60000 ftlb
- Clutch Peak Thermal Input Rate:
- 16.80 hp
- Max Operating Pressure:
- 80 psi
- Min Engagement Pressure:
- 5 psi
- Inlet Size:
- 0.125 NPT
- Bore Style:
- Machined Bore with Keyway, Nexen Adapter Bushing Required
- Clutch Air Chamber Volume When New:
- 0.327 in³
- Clutch Air Chamber Volume When Worn Out:
- 0.855 in³
- Materials Of Construction:
- Black Oxide
- Output Shaft Style:
- None
