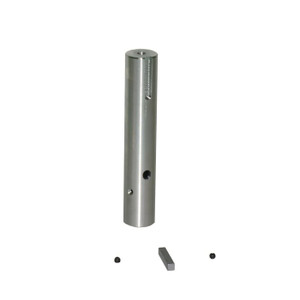

Nexen 810000 Shaft Adapter Sleeve
NexenShaft Adapter Sleeve
HW*ADAPTER SLEEVE,1.000 BORE
Configuration Notes: Used On Short Shafts When Clutch Set Screw End Faces Away From Motor/Reducer, Most Commonly Used When Putting A Coupling On The Clutch To Connect Two Shafts Application Considerations: Includes Shaft Key And Longer Set Screws Increases Shaft Length And Diameter To Provide Full Clutch Support
Length=5.560 in; Bore Size=Machined Bore with Keyway; Input Bore Diameter=1.000 in; Output Shaft Diameter=1.875 in
Restrictions=Do Not Put Over Hung Loads Beyond The End Of The Supporting Motor/Reducer Shaft
- Weight:
- 6.7 lbs
- CE Certified:
- CE
- RoHS Compliant:
- RoHS
- Bore Details:
- Straight
- Bore Style:
- Machined Bore with Keyway
- QN-QUOTE-REQUEST:
- true
