Description

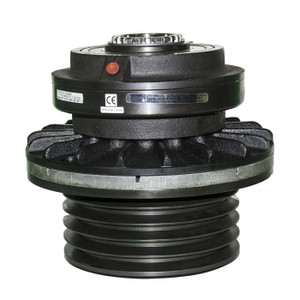

AC 2 Friction Clutches H-1000 1.875,PILOT MOUNT,HCO
View AllClose
Comments: | "Pilot Mount Clutches Accept Customer Supplied Pulleys Or Sprockets, Or Nexen Couplings" |
Comments: | Can Be Configured As A DRIVING Shaft Mounted Clutch-Brake With Disc And Caliper Listed Under Accessories In Left Column |
Comments: | This Clutches Bore Can Be Reduced With The Bushings Found In Accessories To The Left |
Open Or Enclosed Design: | Open |
Drive Arrangement: | Pilot Mount |
Bore Size: | 1.875 in.;0-1.75 With Bushings |
Minimum Shaft Insertion: | "4.00 in. From Pilot End, Full From Air Chamber End" |
Bore Style: | Straight With Keyway And 2 Setscrews |
Pilot Size: | 4.875 in. |
Pilot Or Drive Flange Bolt Circle Data: | "4, 0.375""-16 Bolts @ 90° On A 5.625 in. Circle" |
Length: | 8.50 in. |
Clutch Facing Type: | High Coefficient |
Clutch Facing Edge Color Code: | Purple |
Maximum Static Clutch Torque: | 3920 inlbs |
Maximum Clutch Continuous Thermal Dissipation: | 2.25 hp |
Clutch Heat Sink Capacity: | 230000 ftlb |
Clutch Peak Thermal Input Rate: | 45.20 hp |
Backlash: | 0.21° |
Minimum Sprocket Size: | "40/45T, 50/37T, 60/31T, 80/24T, 100/20T" |
Drive Inertia: | 428.77 lbin² |
Shaft Inertia: | 180.44 lbin² |
Max Rpm: | 1800 |
Actuation/Return: | Air/Spring |
Port Size: | 0.125 NPT |
Maximum Operating Pressure: | 80 psi |
Minimum Engagement Pressure: | 5 psi |
Temperature Range: | 32 - 150 °F |
Approximate Clutch Facing Life: | 1840 hphr |
Clutch Air Chamber Volume When New: | 1.246 in³ |
Clutch Air Chamber Volume When Worn Out: | 5.248 in³ |
Ratings: | "CE, And RoHS" |
Finish: | Black Oxide |
Outer Diameter: | 10.06 in. |
Shipping Weight: | 63.6 LB |
