Description

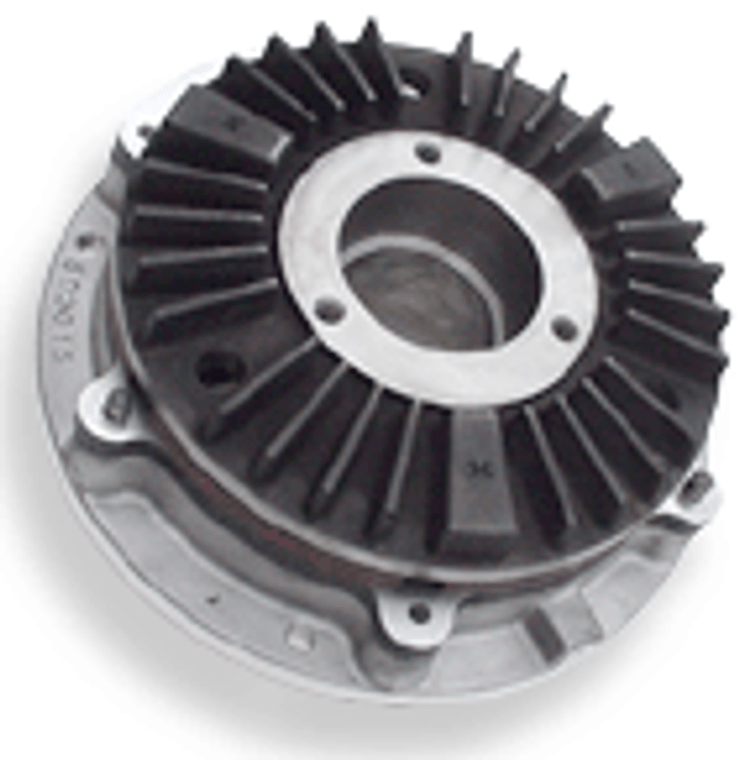

Metric SSE Spring Engage Brake SSE1000 75MM BORE,10 SPRING,MM
View AllClose
| Open Or Enclosed Design: | Open |
| Bore Size: | 75 mm |
| Bore Style: | Straight |
| Length: | 138.0 mm |
| Brake Facing Type: | High Coefficient |
| Brake Facing Edge Color Code: | Purple |
| Maximum Static Brake Torque: | 418 Nm |
| Maximum Brake Continuous Thermal Dissipation: | 2.23 kW |
| Brake Heat Sink Capacity: | 271000 Joule |
| Brake Peak Thermal Input Rate: | 33.60 kW |
| Shaft Inertia: | 826.00 kgcm² |
| Max Rpm: | 1800 |
| Actuation/Return: | Spring/Air |
| Port Size: | 0.125 BSPT |
| Maximum Operating Pressure: | 6.5 bar |
| Minimum Release Pressure: | 6.0 bar |
| Temperature Range: | 32 - 150 °F |
| Approximate Brake Facing Life: | 3729 kWhr |
| Ratings: | "CE, And RoHS" |
| Finish: | Black Oxide |
| Outer Diameter: | 302.0 mm |
| Restrictions: | Consult Nexen For Use In Cyclic Applications |
| Shipping Weight: | 73.0 LB |
