Description

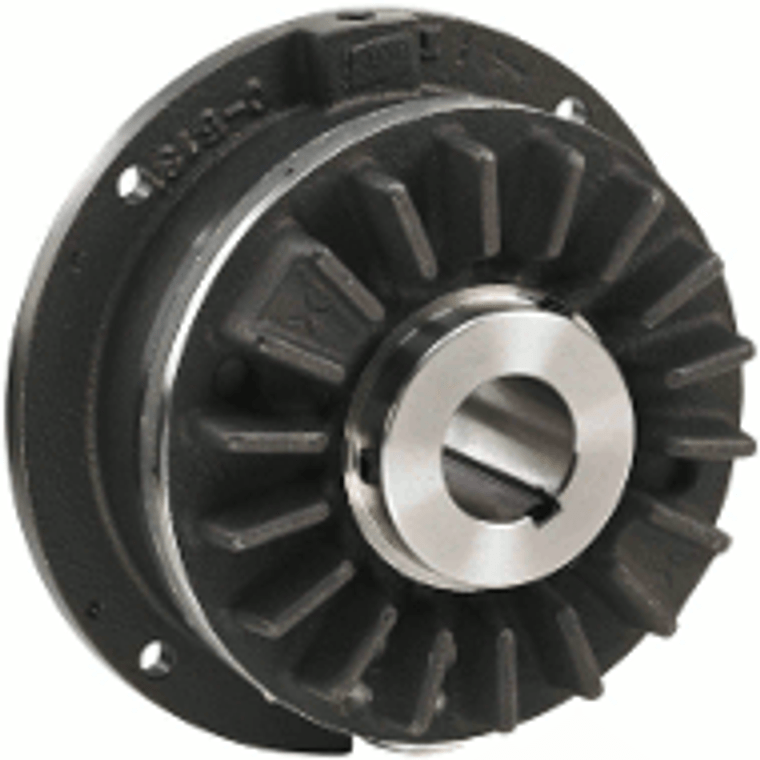

Metric Friction Brakes S-600 17MM BLANK,SEMI-ASSY,METRIC
View AllClose
Features: | Minimum Bore Brakes Come Unassembled For Machining |
Comments: | To Prevent Housing Rotation See Torque Pin Bracket Under Accessories To the Left |
Open Or Enclosed Design: | Open |
Bore Size: | 17 mm |
Bore Style: | Unfinished Pilot Bore |
Length: | 3.20 in. |
Brake Facing Type: | Standard Coefficient |
Brake Facing Edge Color Code: | Red |
Maximum Static Brake Torque: | 103 Nm |
Maximum Brake Continuous Thermal Dissipation: | 0.97 kW |
Brake Heat Sink Capacity: | 81000 Joule |
Brake Peak Thermal Input Rate: | 12.70 kW |
Shaft Inertia: | 59.00 kgcm² |
Max Rpm: | 1800 |
Actuation/Return: | Air/Spring |
Port Size: | 0.250 BSPT |
Maximum Operating Pressure: | 6.0 bar |
Temperature Range: | 32 - 150 °F |
Approximate Engagement Response Time: | 70 ms |
Approximate Brake Facing Life: | 427 kWhr |
Brake Air Chamber Volume When New: | 16.780 cm³ |
Brake Air Chamber Volume When Worn Out: | 34.540 cm³ |
Ratings: | "CE, And RoHS" |
Finish: | Black Oxide |
Outer Diameter: | 7.19 in. |
Shipping Weight: | 20.0 LB |
