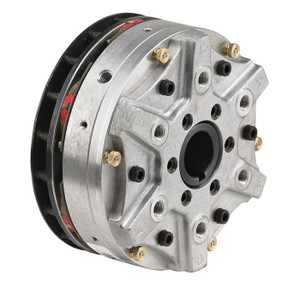

Nexen 835099 Multi-Caliper Tension Brake
NexenMulti-Caliper Tension Brake
TCB07*ROTOR-HOUSING,30MM BORE,LOCO,SPCL
Air Engaged, Shaft Mount, Multi-Caliper, Air Cooled, Heavy Duty
Length=5.32 in; Outer Diameter=9.25 in; Bore Size=30 mm, Machined Bore with Keyway; Input Keyway=8W x 7H x 50.8L mm; Disc Diameter=7 in
Product Features=Air Engaged, Shaft Mount, Multi-Caliper, Air Cooled, Heavy Duty; Braking Capability=Continuous Slip, E-Stop, Holding
- Weight:
- 15 lbs
- Mounting Style:
- Shaft
- Anti Rotation Style:
- Flange
- Engagement Method:
- Air
- Release Method:
- Spring
- Max Speed:
- 1800 RPM
- Shaft Inertia:
- 100 kgcm²
- Open Or Enclosed Design:
- Open
- Primary Finish:
- Black Oxide
- Min Ambient Temperature:
- 32 °F
- Max Ambient Temperature:
- 150 °F
- CE Certified:
- CE
- RoHS Compliant:
- RoHS
- Bore Details:
- Straight
- Input Shaft Securement:
- 3, M8-1.25 Set Screws @ 120°
- Brake Facing Type:
- Low Coefficient
- Brake Facing Edge Color Code:
- Green
- Approximate Brake Facing Life:
- 1678 kWhr, With All Calipers Used
- Brake Facing Effective Area:
- 52 cm², With All Calipers Used
- Max Brake Continuous Thermal Dissipation:
- 1.20 kW
- Brake Peak Thermal Input Rate:
- 35.70 kW, With All Calipers Used
- Max Number Of Calipers:
- 3
- Max Dynamic Torque With All Calipers:
- 28.5 Nm
- Direction Of Rotation:
- Bidirectional
- Max Operating Pressure:
- 85 psi
- Min Engagement Pressure:
- 1 psi
- Inlet Size:
- 0.125 NPT, Or 5/32 in Plastic Tubing Fitting Included
- Bore Style:
- Machined Bore with Keyway
- Clutch Air Chamber Volume When Worn Out:
- 0.630 in³, Per Caliper
- Materials Of Construction:
- Black Oxide Housing And Disc Bare Cast Aluminum Calipers
- Output Shaft Style:
- None
