Nexen 835152 TCB Tension Control Brakes TCB20 ROTOR,2.938 BORE

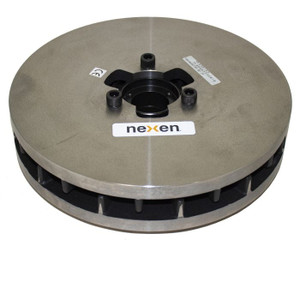

Nexen 835152 Rotary Brake Rotor With Hub

Nexen
SKU:
835152
Availability:
Contact us to confirm availability and lead times.
$4,016.00
Condition:
New
Current Stock:
Description

Rotary Brake Rotor With Hub



TCB20*ROTOR,2.938 BORE

Ventilated, Disc With Hub Only

Application Considerations: 2 Inch Thick, Ventilated Rotor With Hub, For TCC Clutch, And TCB Brake

Outer Diameter=20 in; Bore Size=2.937 in, Machined Bore with Keyway; Input Keyway=0.751W x 0.751H x 6.0L in; Disc Thickness=2.06 in; Disc Diameter=20 in

Product Features=Ventilated, Disc With Hub Only
Additional Information
Weight:
168 lbs
Max Speed:
1800 RPM
Shaft Inertia:
5498.28 lbin²
Primary Finish:
Black Oxide
CE Certified:
CE
RoHS Compliant:
RoHS
IEC IP Rating:
0
Bore Details:
Straight
Input Shaft Securement:
3, 0.625-11 Set Screws @ 120°
Max Brake Continuous Thermal Dissipation:
16.6 hp
Brake Heat Sink Capacity:
1535000 ftlb
Direction Of Rotation:
Bidirectional
Bore Style:
Machined Bore with Keyway
Materials Of Construction:
Black Oxide
