Nexen 835153 TCB Tension Control Brakes TCB10 ROTOR,QD'JA'

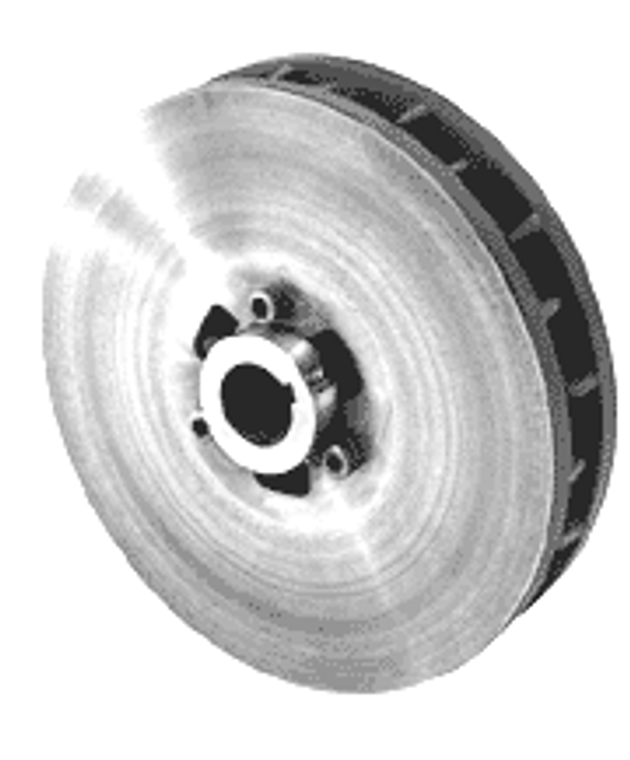

Nexen 835153 Rotary Brake Rotor With Hub

Nexen
SKU:
835153
Availability:
Contact us to confirm availability and lead times.
$1,576.00
Condition:
New
Current Stock:
Description

Rotary Brake Rotor With Hub



TCB10*ROTOR,QD'JA'

Ventilated, Disc With Hub Only

Application Considerations: 2 Inch Thick, Ventilated Rotor With Hub, For TCC Clutch, And TCB Brake

Outer Diameter=10 in; Bore Size=0.500-1.000 in Customer Taper Bushing Required; Disc Thickness=2.06 in; Disc Diameter=10 in

Product Features=Ventilated, Disc With Hub Only
Additional Information
Weight:
26.5 lbs
Max Speed:
3600 RPM
Shaft Inertia:
344.16 lbin²
Primary Finish:
Black Oxide
CE Certified:
CE
RoHS Compliant:
RoHS
IEC IP Rating:
0
Bore Details:
QD Type JA, Customer Provides
Max Brake Continuous Thermal Dissipation:
4.4 hp
Brake Heat Sink Capacity:
663000 ftlb
Direction Of Rotation:
Bidirectional
Bore Style:
Customer Taper Bushing Required
Materials Of Construction:
Black Oxide
