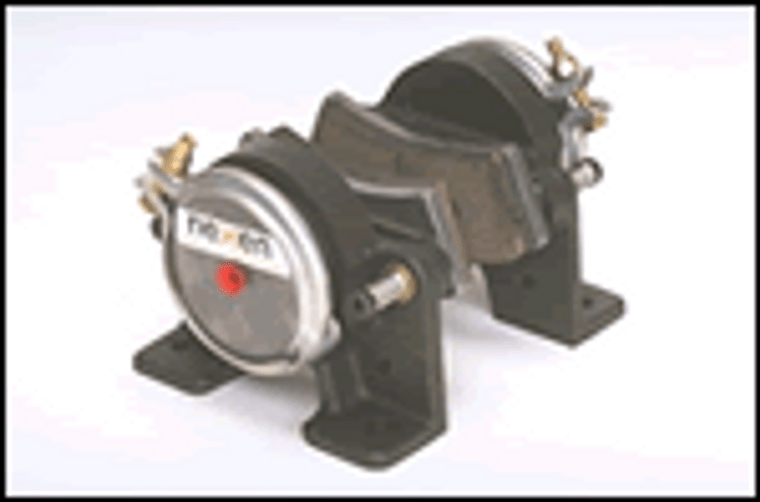

Nexen 835200 Air Engaged Caliper Brake
NexenAir Engaged Caliper Brake
BC288A*BRAKE,AIR ENGAGED,HCO
Air Engaged, Spring Released, Foot Mount
Application Considerations: Air Engaged, Foot Mounted Brake Torque = Working Radius X Torque Factor
Disc Thickness=Unlimited; Disc Working Radius=WR=D/2-1.062 For 16 in Or Larger Discs
Product Features=Air Engaged, Spring Released, Foot Mount; Braking Capability=Cyclic Dynamic, E-Stop, Holding
- Weight:
- 18.83 lbs
- Engagement Method:
- Air
- Release Method:
- Spring
- Backlash:
- 0.02 in, Linear Or Disc Working Radius
- Open Or Enclosed Design:
- Open
- Primary Finish:
- Black Oxide
- Min Ambient Temperature:
- 32 °F
- Max Ambient Temperature:
- 150 °F
- CE Certified:
- CE
- RoHS Compliant:
- RoHS
- Max Static Brake Torque:
- 4000 inlb, With A 24 in Disc
- Brake Torque:
- 4000 inlb, With A 24 in Disc
- Brake Facing Type:
- High Coefficient
- Brake Facing Edge Color Code:
- Purple
- Approximate Brake Facing Life:
- 616 hphr
- Brake Facing Effective Area:
- 17.6 in²
- Brake Peak Thermal Input Rate:
- 44.00 hp
- Static Torque Factor Burnished:
- 365 lbf, @ 80 psi
- Clamping Force:
- 1040 lbf, @ 80 psi
- Max Allowable Pressure:
- 120 psi
- Max Operating Pressure:
- 80 psi
- Min Engagement Pressure:
- 5 psi
- Inlet Size:
- 0.125 NPT
- Brake Air Chamber Volume When New:
- 0.624 in³
- Brake Air Chamber Volume When Worn Out:
- 3.039 in³
- Materials Of Construction:
- Black Oxide
