Description

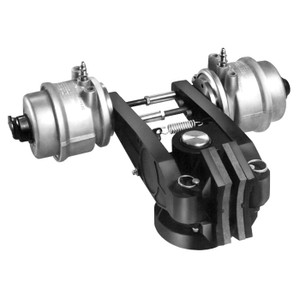

Caliper Brakes BC425S BRAKE,SPR ENGAGED,HCO,SPCL
View AllClose
| Open Or Enclosed Design: | Open |
| Brake Facing Type: | High Coefficient |
| Brake Facing Edge Color Code: | Purple |
| Maximum Static Brake Torque: | 4417 inlbs With A 24 in. Disc |
| Brake Peak Thermal Input Rate: | 66.00 hp |
| Static Torque Factor (Out Of Box): | 404 lbf @ 0 psi |
| Dynamic Torque Factor (Out Of Box): | 343 lbf @ 0 psi |
| Clamping Force: | 1957 lbf @ 0 psi |
| Backlash: | 0.020 in. Linear Or Disc Working Radius |
| Disc Thickness: | 0.500 in. |
| Disc Working Radius (in.): | WR=D/2-1.062 For 16 in. Or Larger Discs |
| Actuation/Return: | Spring/Air |
| Port Size: | 0.125 NPT |
| Maximum Operating Pressure: | 100 psi |
| Minimum Release Pressure: | 69 psi |
| Temperature Range: | 32 - 150 °F |
| Approximate Brake Facing Life: | 924 hphr |
| Brake Air Chamber Volume When New: | 0.785 in³ |
| Brake Air Chamber Volume When Worn Out: | 5.021 in³ |
| Ratings: | "CE, And RoHS" |
| Finish: | Black Oxide |
| Restrictions: | Consult Nexen For Use In Cyclic Applications |
| Brake Torque = Working Radius X Torque Factor | |
| Shipping Weight: | 33.6 LB |
