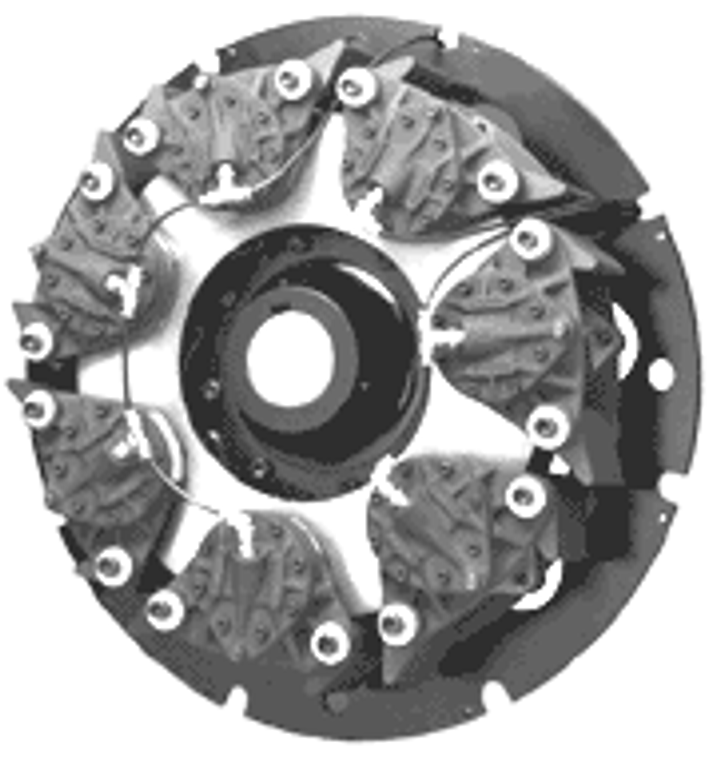

Nexen 835493 XTB Tension Control Brakes XTB-18 ROTOR HUB,DUAL ROTOR,2.938 B

Nexen 835493 Modular Multi-Caliper Tension Brake

Nexen
SKU:
835493
Availability:
Contact us to confirm availability and lead times.
$4,112.00
Condition:
New
Current Stock:
Description

Modular Multi-Caliper Tension Brake



XTB-18*ROTOR HUB,DUAL ROTOR,2.938 BORE,CW

Air Engaged, Shaft Mount, Multi-Caliper, Air Cooled, Heavy Duty, Dual Rotor-Hub Only

Purchase Disc, Calipers, Facings, And Guard Separately

Length=11.49 in, With Guard 10.33 Without Minimum; Length=11.49 in, With Guard 10.33 Without Minimum; Body Length=7.00 in; Outer Diameter=25.88 in, With Guard 24.50 Without; Bore Size=2.938 in, Machined Bore with Keyway; Disc Thickness=4.13 in; Disc Diameter=18 in

Product Features=Air Engaged, Shaft Mount, Multi-Caliper, Air Cooled, Heavy Duty, Dual Rotor-Hub Only; Restrictions=Disc Counter Rotation Reduces Thermal Performance By 10% For 0 - 500 RPM And 25% Above 500 RPM; Braking Capability=Continuous Slip, E-Stop, Holding
Additional Information
Weight:
180 lbs
Mounting Style:
Shaft
Anti Rotation Style:
Standoff Studs
Engagement Method:
Air
Release Method:
N/A
Max Speed:
1900 RPM
Shaft Inertia:
35.95 lbft²
Open Or Enclosed Design:
Open
Primary Finish:
Blue Powder Paint
Min Ambient Temperature:
32 °F
Max Ambient Temperature:
150 °F
CE Certified:
CE
RoHS Compliant:
RoHS
Bore Details:
Straight
Max Brake Continuous Thermal Dissipation:
40.00 hp
Max Number Of Calipers:
9
Min Torque With 1 Ultra-Low Coefficient Caliper:
11 inlb, @ 1 psi
Max Torque With 1 Ultra-Low Coefficient Caliper:
883 inlb, @ 80 psi
Min Torque With 1 Low Coefficient Caliper:
11 inlb, @ 1 psi
Max Torque With 1 Low Coefficient Caliper:
883 inlb, @ 80 psi
Min Torque With 1 Standard Coefficient Caliper:
17 inlb, @ 1 psi
Max Torque With 1 Standard Coefficient Caliper:
1363 inlb, @ 80 psi
Max Dynamic Torque Low Coefficient:
7947 inlb
Max Dynamic Torque Standard Coefficient:
14265 inlb
Direction Of Rotation:
Clockwise
Max Operating Pressure:
85 psi
Min Engagement Pressure:
1 psi
Bore Style:
Machined Bore with Keyway
Materials Of Construction:
Blue Powder Paint
Output Shaft Style:
None
Actuation Type:
Multiple Calipers, Up to 9 Calipers, Sold Separately
