Description

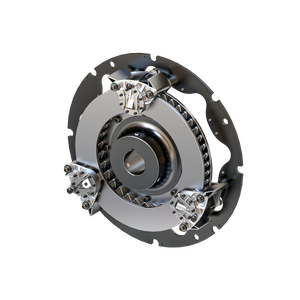

XTBA Advanced Tension Brakes XTBA-14 ROTOR-HUB,1.500,CCW,NSB
View AllClose
| Features: | "High Thermal Capacity, Wide Torque Range, And Quick Change Facings" |
| Direction Of Rotation: | Counterclockwise |
| Open Or Enclosed Design: | Open |
| Bore Size: | 1.500 in. |
| Bore Style: | Straight |
| Length: | 9.06 in. |
| Maximum # Of Calipers: | 7 |
| Maximum Brake Continuous Thermal Dissipation: | 23.30 hp |
| Torque With 1 Low Coefficient Caliper @ 1 psi: | 9 inlbs |
| Torque With 1 Low Coefficient Caliper @ 80 psi: | 687 inlbs |
| Torque With 1 Standard Coefficient Caliper @ 1 psi: | 14 inlbs |
| Torque With 1 Standard Coefficient Caliper @ 80 psi: | 1116 inlbs |
| Maximum Torque (LoCo): | 4809 inlbs |
| Maximum Torque (Std): | 9086 inlbs |
| Disc Thickness: | 2.06 in. |
| Disc Diameter: | 14 in. |
| Shaft Inertia: | 1045.44 lbin² |
| Max Rpm: | 2400 |
| Actuation/Return: | Air/None |
| Maximum Operating Pressure: | 85 psi |
| Minimum Engagement Pressure: | 1 psi |
| Temperature Range: | 32 - 150 °F |
| Ratings: | "CE, And RoHS" |
| Finish: | Black Oxide |
| Outer Diameter: | 20.75 in. |
| Restrictions: | Disc Counter Rotation Reduces Thermal Performance By 10% For 0 - 500 RPM And 25% Above 500 RPM |
| "Purchase Disc, Calipers, Facings, And Guard Separately" | |
| Shipping Weight: | 80.3 LB |
