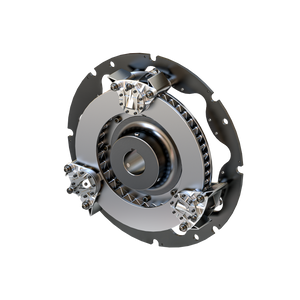

Nexen 835697 Modular Multi-Caliper Tension Brake
NexenModular Multi-Caliper Tension Brake
XTB-22*ROTOR-HUB,1.938 BORE,CW,NSB
Air Engaged, Shaft Mount, Multi-Caliper, Air Cooled, Heavy Duty, Rotor-Hub Only
Purchase Disc, Calipers, Facings, And Guard Separately
Length=9.74 in; Outer Diameter=29.93 in; Bore Size=1.938 in, Machined Bore with Keyway; Disc Thickness=3.05 in; Disc Diameter=22 in
Product Features=Air Engaged, Shaft Mount, Multi-Caliper, Air Cooled, Heavy Duty, Rotor-Hub Only; Restrictions=Disc Counter Rotation Reduces Thermal Performance By 10% For 0 - 500 RPM And 25% Above 500 RPM; Braking Capability=Continuous Slip, E-Stop, Holding
- Weight:
- 297 lbs
- Mounting Style:
- Shaft
- Anti Rotation Style:
- Standoff Studs
- Engagement Method:
- Air
- Release Method:
- N/A
- Max Speed:
- 1545 RPM
- Shaft Inertia:
- 69.48 lbft²
- Open Or Enclosed Design:
- Open
- Primary Finish:
- Blue Powder Paint
- Min Ambient Temperature:
- 32 °F
- Max Ambient Temperature:
- 150 °F
- CE Certified:
- CE
- RoHS Compliant:
- RoHS
- Bore Details:
- Straight
- Max Brake Continuous Thermal Dissipation:
- 44.00 hp
- Max Number Of Calipers:
- 7
- Min Torque With 1 Ultra-Low Coefficient Caliper:
- 27 inlb, @ 1 psi
- Max Torque With 1 Ultra-Low Coefficient Caliper:
- 2160 inlb, @ 80 psi
- Min Torque With 1 Low Coefficient Caliper:
- 27 inlb, @ 1 psi
- Max Torque With 1 Low Coefficient Caliper:
- 2160 inlb, @ 80 psi
- Min Torque With 1 Standard Coefficient Caliper:
- 63 inlb, @ 1 psi
- Max Torque With 1 Standard Coefficient Caliper:
- 5040 inlb, @ 80 psi
- Max Dynamic Torque Low Coefficient:
- 15120 inlb
- Max Dynamic Torque Standard Coefficient:
- 35280 inlb
- Direction Of Rotation:
- Clockwise
- Max Operating Pressure:
- 85 psi
- Min Engagement Pressure:
- 1 psi
- Bore Style:
- Machined Bore with Keyway
- Materials Of Construction:
- Blue Powder Paint
- Output Shaft Style:
- None
- Actuation Type:
- Multiple Calipers, Up to 7 Calipers, Sold Separately
