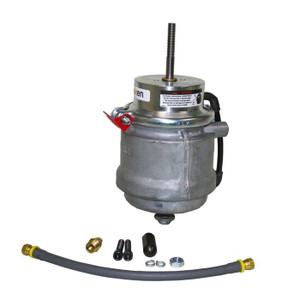

Air Engaged Caliper Brake Actuator
SPC*BRAKE,AIR ACTUATOR
Air Engaged, Spring Released, Actuator Only
Application Considerations: This Is The Actuator Only, Choose Caliper Body First Brake Torque = Working Radius X Torque Factor
Disc Working Radius=WR=D/2-1.437 For 12 in Or Larger Discs
Product Features=Air Engaged, Spring Released, Actuator Only; Braking Capability=Cyclic Dynamic, E-Stop, Holding
- Weight:
- 6.5 lbs
- Engagement Method:
- Air
- Release Method:
- Spring
- Open Or Enclosed Design:
- Open
- Primary Finish:
- Black Oxide
- Min Ambient Temperature:
- 32 °F
- Max Ambient Temperature:
- 150 °F
- CE Certified:
- CE
- RoHS Compliant:
- RoHS
- Max Static Brake Torque:
- Up To 50000 inlb, Depending On Caliper, # Of Actuators, And Disc Diameter
- Brake Torque:
- Up To 50000 inlb, Depending On Caliper, # Of Actuators, And Disc Diameter
- Brake Facing Effective Area:
- 31.0 in²
- Brake Peak Thermal Input Rate:
- 76.00 hp
- Clamping Force:
- SPC8=2700
- SPC12:
- 4000
- SPC20:
- 6700 lbf, Air Actuator @ 80 psi Or 70 psi Release Spring Actuator
- Max Allowable Pressure:
- 120 psi
- Max Operating Pressure:
- 80 psi
- Min Engagement Pressure:
- 10 psi
- Inlet Size:
- 0.375 NPT
- Brake Air Chamber Volume When New:
- 2.573 in³, Per Actuator
- Brake Air Chamber Volume When Worn Out:
- 16.047 in³, Per Actuator
- Materials Of Construction:
- Black Oxide
