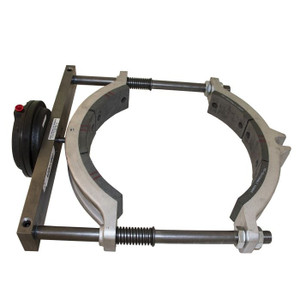

Air Engaged Drum Brake

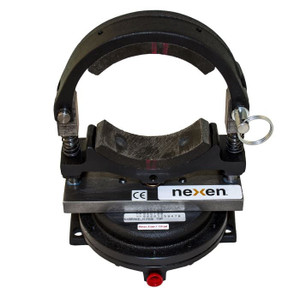

12K*BRAKE,HINGE TOP
Air Engaged, Hinge Top, Shoe Only, Drum Required
Application Considerations: Shoe Assembly Only
Length=17.25 in
Product Features=Air Engaged, Hinge Top, Shoe Only, Drum Required; Braking Capability=Continuous Slip, Cyclic Dynamic, E-Stop, Holding
- Weight:
- 37.71 lbs
- Anti Rotation Style:
- Includes Foot Mounting Bracket
- Engagement Method:
- Air
- Release Method:
- Spring
- Shaft Inertia:
- 465.1 lbin²
- Open Or Enclosed Design:
- Open
- Primary Finish:
- Black Oxide
- Min Ambient Temperature:
- 32 °F
- Max Ambient Temperature:
- 150 °F
- CE Certified:
- CE
- RoHS Compliant:
- RoHS
- Max Static Brake Torque:
- 3750 inlb
- Brake Torque:
- 3750 inlb
- Brake Facing Type:
- Standard Coefficient
- Brake Facing Edge Color Code:
- Red
- Approximate Brake Facing Life:
- 1714 hphr
- Brake Facing Effective Area:
- 4.4 in²
- Max Brake Continuous Thermal Dissipation:
- 3.00 hp
- Brake Heat Sink Capacity:
- 405000 ftlb
- Brake Peak Thermal Input Rate:
- 4.00 hp
- Max Allowable Pressure:
- 120 psi
- Max Operating Pressure:
- 80 psi
- Min Engagement Pressure:
- 2 psi
- Inlet Size:
- 0.125 NPT
- Housing Type:
- Hinge Top
- Brake Air Chamber Volume When New:
- 6.283 in³
- Brake Air Chamber Volume When Worn Out:
- 12.566 in³
- Materials Of Construction:
- Black Oxide
