Nexen 910139 Spring Engaged Positioning Tooth Clutch

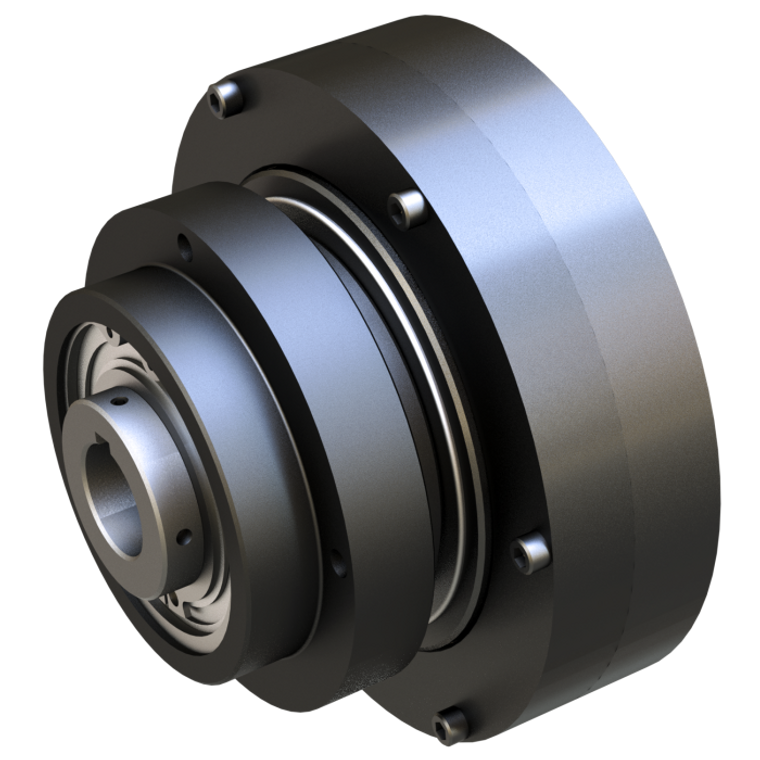

NexenSpring Engaged Positioning Tooth Clutch
5H35PSPSE*25MM BORE,PILOT,NSB
Spring Engaged, Air Released, Pilot Mount, Single Position
Application Considerations: Pilot Mount, Spring Engaged Positional Reengagement Torque Is Approximately 10% Of Clutch Torque Being Generated Based On Applied Air Pressure
Outer Diameter=6.38 in; Pilot Size=3.500 in; Bore Size=25 mm, Machined Bore with Keyway; Output Bolt Circle=4.062 in; Output Bolt Hole Size=4 0.250-20 in, Holes @ 90°
Product Features=Spring Engaged, Air Released, Pilot Mount, Single Position; Restrictions=Consult Nexen For Use In Cyclic Applications Or Engagement At Differential Speeds
- Weight:
- 20.4 lbs
- Min Sprocket Size:
- 35/40T, 40/32T, 50/26T, 60/22T, 80/17T
- Mounting Style:
- Shaft
- Engagement Method:
- Spring
- Release Method:
- Air
- Number Of Engagement Positions:
- 1, @ 360°
- Max Speed:
- 3200 RPM
- Drive Inertia:
- 16.03 lbin²
- Shaft Inertia:
- 4.34 lbin²
- Backlash:
- 0.35 °
- Open Or Enclosed Design:
- Open
- Primary Finish:
- Black Oxide
- Min Ambient Temperature:
- 32 °F
- Max Ambient Temperature:
- 150 °F
- CE Certified:
- CE
- RoHS Compliant:
- RoHS
- Bore Details:
- Straight
- Max Static Clutch Torque:
- 1480 inlb
- Max Allowable Pressure:
- 120 psi
- Max Operating Pressure:
- 80 psi
- Min Release Pressure:
- 45 psi
- Air Chamber Volume:
- 0.492 in³
- Inlet Size:
- 0.125-27 NPTM
- Hose Length:
- 8.25 in
- Positioning:
- Positioning
- Bore Style:
- Machined Bore with Keyway
- Materials Of Construction:
- Machined Aluminum Air Chamber Black Oxide Pilot
- Output Configuration:
- Pilot
