Description

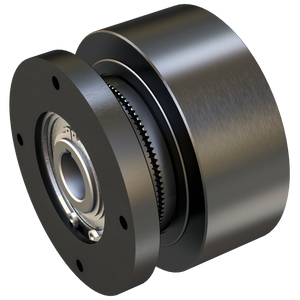

5HP-E Enclosed Tooth Clutch 5H20P-E 0.750 BORE,PILOT,NP,SPCL
View AllClose
Comments: | The Enclosure Seal On Outer Housing Can Generate Up To 200°F When New Depending On The 5HP-E Size And RPM. Time To Break In And Temperature To Drop Will Vary With Application. |
Open Or Enclosed Design: | Enclosed |
Drive Arrangement: | Pilot Mount |
Bore Size: | 0.750 in. |
Bore Style: | Straight |
Pilot Size: | 2.250 in. |
Pilot Or Drive Flange Bolt Circle Data: | "6, 0.190-24 Holes @ 60° On A 2.750 in. B.C." |
Maximum Static Clutch Torque: | 1500 inlbs |
Minimum Static Clutch Torque: | 100 inlbs |
Backlash: | 0.58° |
Number Of Engagement Positions: | 64 |
Minimum Sprocket Size: | "35/36T, 40/28T, 50/22T, 60/20T" |
Drive Inertia: | 2.16 lbin² |
Shaft Inertia: | 0.35 lbin² |
Max Rpm: | 1800 |
Actuation/Return: | Air/Spring |
Port Size: | 0.125 NPT |
Hose Length: | 8.25 in. |
Maximum Operating Pressure: | 80 psi |
Minimum Engagement Pressure: | 20 psi |
Temperature Range: | 32 - 150 °F |
Air Chamber Volume: | 0.250 in³ |
Ratings: | "NEMA MG1-2006 1.26.6 (Waterproof Machines), IP55, CE, And RoHS" |
Finish: | Nickel Plated |
Restrictions: | Consult Nexen For Use In Cyclic Applications Or Engagement At Differential Speeds |
Shipping Weight: | 8.0 LB |
