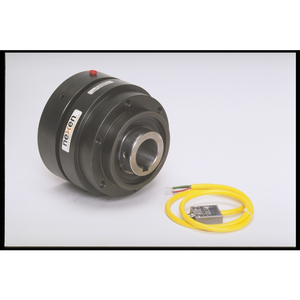

Nexen 912512 Air Engaged Positioning Tooth Clutch
Air Engaged Positioning Tooth Clutch
5H50PSP-1*1.688 BORE,PILOT
Air Engaged, Spring Released, Pilot Mount, Single Position
Positional Reengagement Torque Is Approximately 10% Of Clutch Torque Being Generated Based On Applied Air Pressure
Pilot Size=4.500 in; Bore Size=1.688 in, Machined Bore with Keyway; Output Bolt Circle=5.25 in; Output Bolt Hole Size=4 0.312-18 in, Holes @ 90°
Product Features=Air Engaged, Spring Released, Pilot Mount, Single Position; Restrictions=Consult Nexen For Use In Cyclic Applications Or Engagement At Differential Speeds
- Weight:
- 24 lbs
- Min Sprocket Size:
- 40/40T, 50/34T, 60/28T, 80/22T
- Mounting Style:
- Shaft
- Engagement Method:
- Air
- Release Method:
- Spring
- Number Of Engagement Positions:
- 1, @ 360°
- Max Speed:
- 3000 RPM
- Drive Inertia:
- 55.16 lbin²
- Shaft Inertia:
- 16.62 lbin²
- Backlash:
- 0.27 °
- Open Or Enclosed Design:
- Open
- Primary Finish:
- Black Oxide
- Min Ambient Temperature:
- 32 °F
- Max Ambient Temperature:
- 150 °F
- CE Certified:
- CE
- RoHS Compliant:
- RoHS
- Bore Details:
- Straight
- Max Static Clutch Torque:
- 7060 inlb
- Min Static Clutch Torque:
- 1770 inlb
- Max Allowable Pressure:
- 120 psi
- Max Operating Pressure:
- 80 psi
- Min Engagement Pressure:
- 20 psi
- Air Chamber Volume:
- 0.994 in³
- Inlet Size:
- 0.125-27 NPTM
- Hose Length:
- 8.25 in
- Positioning:
- Positioning
- Bore Style:
- Machined Bore with Keyway
- Materials Of Construction:
- Machined Aluminum Air Chamber Black Oxide Pilot
- Output Configuration:
- Pilot
