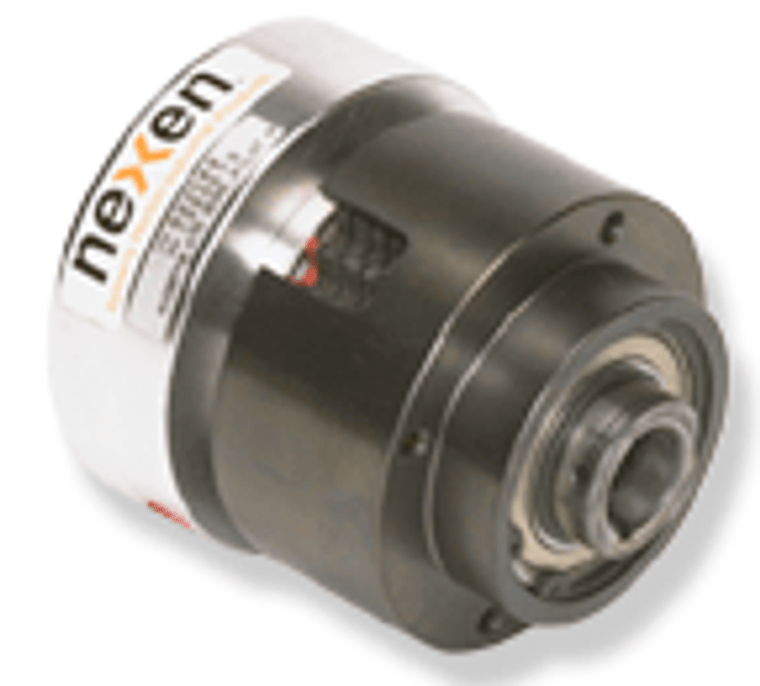

Nexen 923705 Air Engaged Shaft Mount Friction Clutch
NexenAir Engaged Shaft Mount Friction Clutch
4H45P*40MM BORE,PILOT MT,NSB
Air Engaged, Straight Bore, Shaft Mount, Pilot Output, High Torque
Configuration Notes: Inch Product With A Metric Bore And Pilot Bolt Circle Application Considerations: Air Engaged, Shaft Mount, Multiplate Clutch, High Torque In A Compact Package
Length=5.65 in; Outer Diameter=5.91 in; Pilot Size=4.125 in; Bore Size=40 mm, Machined Bore with Keyway; Output Bolt Circle=120 mm; Output Bolt Hole Size=4 M6-1.00 mm, Holes @ 90°
Product Features=Air Engaged, Straight Bore, Shaft Mount, Pilot Output, High Torque; Restrictions=Consult Nexen For Use In Cyclic Applications, Or Use As A Brake
- Output Type:
- Pilot
- Min Sprocket Size:
- 40/40T, 50/32T, 60/28T, 80/21T
- Mounting Style:
- Shaft
- Engagement Method:
- Air
- Release Method:
- Spring
- Max Speed:
- 1800 RPM, Max @ 60 psi, 1400 @ 70 psi, 1000 @ 80 psi
- Drive Inertia:
- 36.7 lbin²
- Shaft Inertia:
- 10.74 lbin²
- Open Or Enclosed Design:
- Open
- Primary Finish:
- Bare Aluminum
- Min Ambient Temperature:
- 32 °F
- Max Ambient Temperature:
- 150 °F
- CE Certified:
- CE
- RoHS Compliant:
- RoHS
- Bore Details:
- Straight With Keyway And 2 Setscrews
- Max Static Clutch Torque:
- 2200 inlb
- Clutch Facing Type:
- Standard Coefficient
- Clutch Facing Edge Color Code:
- Red
- Approximate Clutch Facing Life:
- 192 hphr
- Clutch Facing Effective Area:
- 46.29 in²
- Max Clutch Continuous Thermal Dissipation:
- 0.18 hp
- Clutch Heat Sink Capacity:
- 11800 ftlb
- Clutch Peak Thermal Input Rate:
- 41.70 hp
- Max Operating Pressure:
- 80 psi
- Min Engagement Pressure:
- 10 psi
- Inlet Size:
- 0.125 NPT
- Bore Style:
- Machined Bore with Keyway
- Clutch Air Chamber Volume When New:
- 0.450 in³
- Materials Of Construction:
- Aluminum Air Chamber Black Oxide Drive Shell
- Output Shaft Style:
- None
