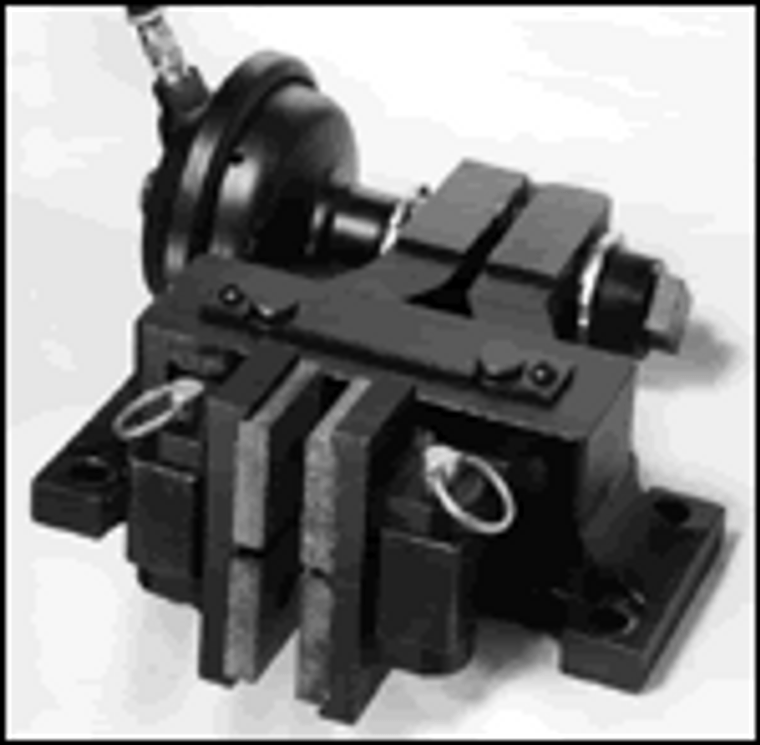

Nexen 933695 Air Engaged Caliper Brake
NexenAir Engaged Caliper Brake
BD*BRAKE,AIR ACTUATED,2.0,LCO
Air Engaged, Spring Released, Foot Mount
Configuration Notes: Special For 2 Inch Thick Disc, SPC Shoes, LoCo Friction Facings, Most Likely Use Tension Control Application Considerations: Air Engaged, Foot Mounted Facing Type In BD Caliper Model Description Is One Type/Coefficient Lower Than Actual Brake Torque = Working Radius X Torque Factor
Disc Thickness=2.000 in; Disc Working Radius=WR=D/2-1.437 For 12 in Or Larger Discs
Product Features=Air Engaged, Spring Released, Foot Mount; Braking Capability=Cyclic Dynamic, E-Stop, Holding
- Weight:
- 42.5 lbs
- Engagement Method:
- Air
- Release Method:
- Spring
- Open Or Enclosed Design:
- Open
- Primary Finish:
- Black Oxide
- Min Ambient Temperature:
- 32 °F
- Max Ambient Temperature:
- 150 °F
- CE Certified:
- CE
- RoHS Compliant:
- RoHS
- Max Static Brake Torque:
- 8250 inlb, With A 24 in Disc
- Brake Torque:
- 8250 inlb, With A 24 in Disc
- Brake Facing Type:
- Low Coefficient
- Brake Facing Edge Color Code:
- Green
- Approximate Brake Facing Life:
- 4894 hphr
- Brake Facing Effective Area:
- 31.0 in²
- Brake Peak Thermal Input Rate:
- 76.00 hp
- Static Torque Factor Burnished:
- 767 lbf, @ 80 psi
- Clamping Force:
- 2550 lbf, @ 80 psi
- Max Allowable Pressure:
- 120 psi
- Max Operating Pressure:
- 80 psi
- Min Engagement Pressure:
- 10 psi
- Inlet Size:
- 0.250 NPT
- Brake Air Chamber Volume When New:
- 2.573 in³
- Brake Air Chamber Volume When Worn Out:
- 16.047 in³
- Materials Of Construction:
- Black Oxide
