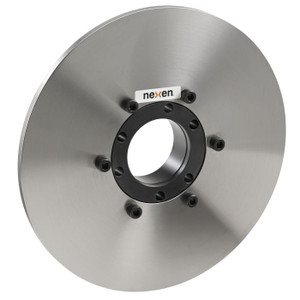

Caliper Brake Disc With Hub
BD*DISC-HUB,22.00 OD,PLAIN
Non-Ventilated, Disc With Hub Only
Application Considerations: 0.50 Inch Thick, Non-Ventilated, Disc With Hub, For BC, BD, VC500, And SPC Brakes Nexen Does Not Provide The QD Bushing
Bore Size=1.500-3.875 in Customer Taper Bushing Required; Disc Thickness=0.500 in; Disc Diameter=22 in; Disc Working Radius=BC=9.938 in
Product Features=Non-Ventilated, Disc With Hub Only
- Weight:
- 146 lbs
- Mounting Style:
- Tapered Bore QD "J" Bushing
- Max Speed:
- 2200 RPM
- Shaft Inertia:
- 3176.64 lbin²
- Primary Finish:
- Black Oxide
- CE Certified:
- CE
- RoHS Compliant:
- RoHS
- IEC IP Rating:
- 0
- Bore Details:
- QD Type J, Customer Provides
- Brake Heat Sink Capacity:
- 636100 ftlb
- Bore Style:
- Customer Taper Bushing Required
- Materials Of Construction:
- Black Oxide
- QN-QUOTE-REQUEST:
- true
