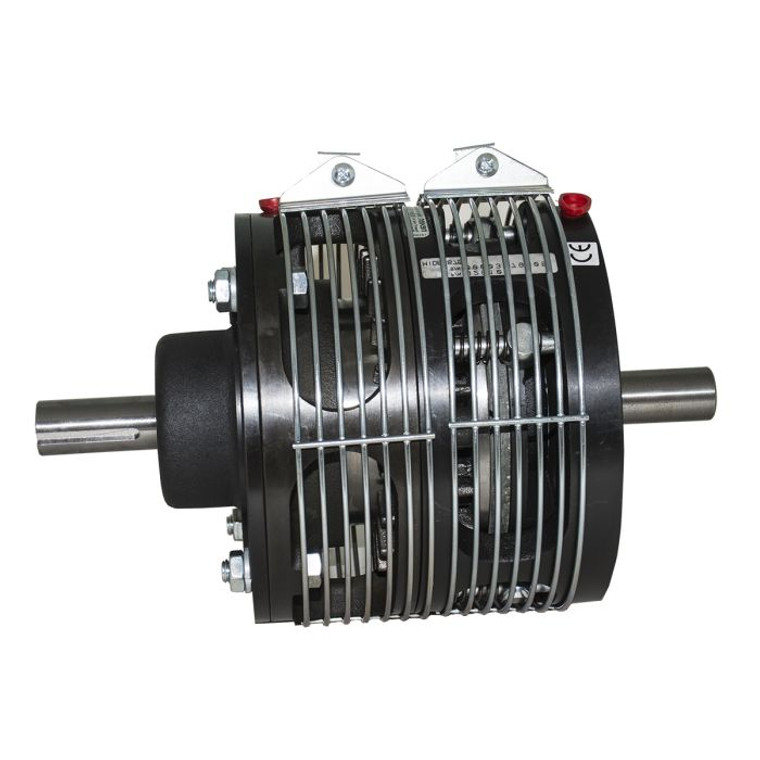

Nexen 935800 Modular Motor/Foot Mount Clutch-Brake
NexenModular Motor/Foot Mount Clutch-Brake
MIDB-1125
Air Engaged Brake, Air Engaged Clutch, Flange Mount, Foot Mount Capable, Enclosed Housing, Includes Input Unit, Modular
Application Considerations: More Commonly Sold As Separate Components Which May Have Better Lead Times More Commonly Sold As Separate Components Which May Have Better Lead Times This Product Can Be Made Drip Proof With The Guard Listed Under Accessories
Length=14.86 in; Body Length=9.57 in; Outer Diameter=9.56 in; Input Shaft Diameter=1.125 in; Bore Size=Shaft with Keyway; Input Keyway=0.250W x 0.250H x 1.75L in; Output Shaft Diameter=1.125 in; Output Bore Diameter=1.125 in; Output Shaft Length=2.65 in; Output Keyway=0.250W x 0.250H x 1.78L in; Output Pilot Diameter=8.50 in; Output Pilot Height=0.25 in; Output Bolt Circle=8.5 in, 4 @ 90°; Output Bolt Hole Size=0.53 in
Product Features=Air Engaged Brake, Air Engaged Clutch, Flange Mount, Foot Mount Capable, Enclosed Housing, Includes Input Unit, Modular
- Weight:
- 107 lbs
- Mounting Style:
- Foot, Motor or Reducer
- Anti Rotation Style:
- Flange, Optional Feet
- Max Speed:
- 1800 RPM
- Overhung Load Capacity:
- 570 lbs, At 1800 RPM/655 At 1200 Input
- Drive Inertia:
- 17.4 lbin²
- Shaft Inertia:
- 20.5 lbin²
- Open Or Enclosed Design:
- Open
- Primary Finish:
- Black Oxide
- Min Ambient Temperature:
- 32 °F
- Max Ambient Temperature:
- 150 °F
- CE Certified:
- CE
- RoHS Compliant:
- RoHS
- Input Frame Size:
- N/A
- Output Frame Size:
- NEMA 182TC, 184TC
- Bore Details:
- Shaft/Shaft
- Input Shaft Securement:
- N/A
- Max Static Clutch Torque:
- 600 inlb
- Max Static Brake Torque:
- 965 inlb
- Brake Torque:
- 965 inlb
- Clutch Facing Type:
- Standard Coefficient
- Clutch Facing Edge Color Code:
- Red
- Approximate Clutch Facing Life:
- 572 hphr
- Clutch Facing Effective Area:
- 18.62 in²
- Brake Facing Type:
- Standard Coefficient
- Brake Facing Edge Color Code:
- Red
- Approximate Brake Facing Life:
- 572 hphr
- Brake Facing Effective Area:
- 18.6 in²
- Combined Continuous Thermal Dissipation:
- 0.50 hp
- Clutch Heat Sink Capacity:
- 60000 ftlb
- Brake Heat Sink Capacity:
- 60000 ftlb
- Max Allowable Pressure:
- 120 psi
- Max Operating Pressure:
- 80 psi
- Min Engagement Pressure:
- 5 psi
- Inlet Size:
- 0.125 NPT
- Bore Style:
- Shaft with Keyway
- Brake Air Chamber Volume When New:
- 1.276 in³
- Brake Air Chamber Volume When Worn Out:
- 2.610 in³
- Clutch Air Chamber Volume When New:
- 0.397 in³
- Clutch Air Chamber Volume When Worn Out:
- 1.058 in³
- Materials Of Construction:
- Black Oxide
- Output Shaft Style:
- Shaft with Keyway
- Clutch Side Engagement Method:
- Air
- Brake Side Engagement Method:
- Air
