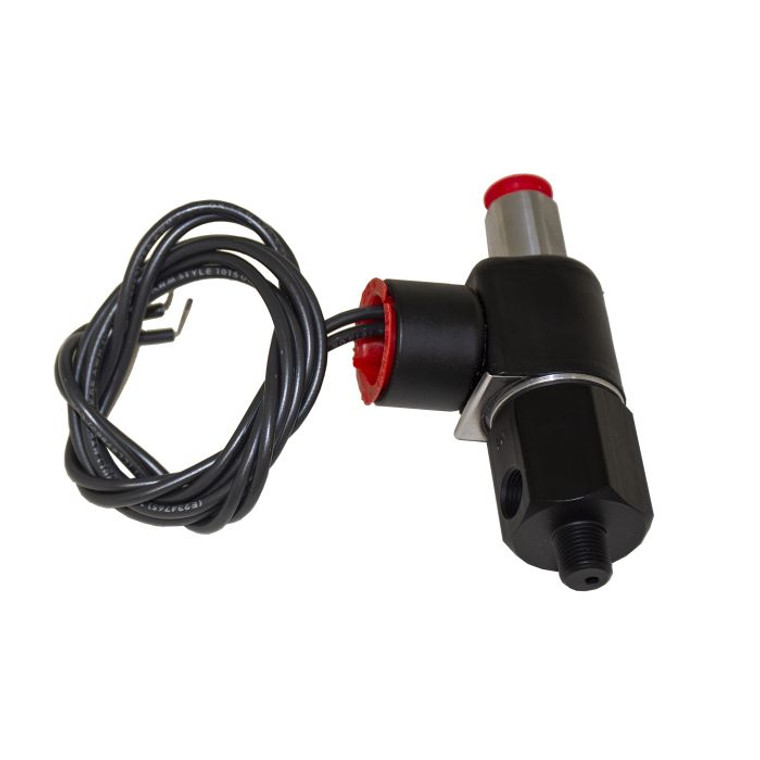

Nexen 948808 3-Way Solenoid Valve

(No reviews yet) Write a Review

SKU:

948808

MPN:

948808

Condition:

New

Weight:

0.88 lbs

Mounting Style:

Inlet

Engagement Method:

Electric

Release Method:

Spring

Min Ambient Temperature:

0 °F

Max Ambient Temperature:

104 °F

CE Certified:

RoHS Compliant:

RoHS

Approximate Engagement Response Time:

5-15 ms

Approximate Release Response Time:

5 - 15 ms

Valve Default Mode:

Normally Closed

Cv Factor:

0.055

Flow Rating:

2.0 @ 50/3.5 @ 100 psi

Operating Range:

0-150 psi

Inlet Size:

0.125 NPT

Cable Length:

18 AWG 24 in

Input Power:

24 VDC, At 7 Watts

Product Type:

3-Way Solenoid Valve

Description

3-Way Solenoid Valve

Name: Nexen 948808 3-Way Solenoid Valve
Brand: Nexen
SKU: 948808
Price: 147 USD
Availability: InStock

3-WAY VALVE*24VDC,N.C.,.125 NPT

3-Way, Solenoid, Normally Closed, Inlet Mounted

Application Considerations: This Valve Is Normally Screwed Into The Device Air Inlet

Length=3.50 in

Product Features=3-Way, Solenoid, Normally Closed, Inlet Mounted
