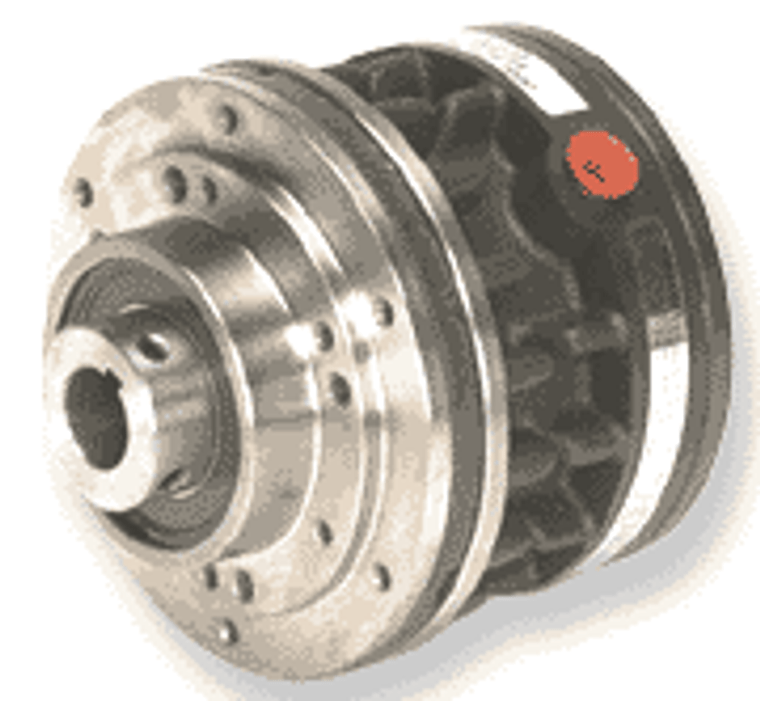

Nexen 950159 Air Engaged Shaft Mounted Clutch
NexenAir Engaged Shaft Mounted Clutch
L-600*30MM BORE,PILOT MOUNT,ULTRA LCO,NSB
Air Engaged, Keyed, Straight Bore, Shaft Mount
Application Considerations: Special Ultra Low Coefficient Facing For Reduced Torque Output, Smoother Operation At Low Differential RPM's, And Very Long Life. Can Be Configured As A Clutch-Brake With Disc And Caliper Listed Under Accessories In Left Column
Length=5.56 in; Outer Diameter=6.06 in; Pilot Size=75 mm; Input Bore Min Shaft Insertion=2.50 in, From Pilot End Full From Air Chamber End; Bore Size=30 mm, Machined Bore with Keyway; Output Bolt Circle=90 mm; Output Bolt Hole Size=4 M6-1.00 mm, Holes @ 90°
Product Features=Air Engaged, Keyed, Straight Bore, Shaft Mount
- Weight:
- 17 lbs
- Output Type:
- Pilot
- Min Sprocket Size:
- 35/40T, 40/30T, 50/25T, 60/21T
- Mounting Style:
- Shaft
- Anti Rotation Style:
- Optional brake disc can stop output with optional caliper brake
- Engagement Method:
- Air
- Release Method:
- N/A
- Max Speed:
- 3600 RPM
- Drive Inertia:
- 80.35 kgcm²
- Shaft Inertia:
- 47.17 kgcm²
- Open Or Enclosed Design:
- Open
- Primary Finish:
- Black Oxide
- Min Ambient Temperature:
- 32 °F
- Max Ambient Temperature:
- 150 °F
- CE Certified:
- CE
- RoHS Compliant:
- RoHS
- Bore Details:
- Straight
- Max Dynamic Torque:
- 18 Nm
- Clutch Facing Type:
- Ultra Low Coefficient
- Clutch Facing Edge Color Code:
- Blue
- Approximate Clutch Facing Life:
- 960 kWhr
- Clutch Facing Effective Area:
- 120.1 cm²
- Max Clutch Continuous Thermal Dissipation:
- 0.56 kW
- Clutch Heat Sink Capacity:
- 81000 Joule
- Clutch Peak Thermal Input Rate:
- 12.50 kW
- Operating Range:
- 0.1-6 bar
- Inlet Size:
- 0.250 BSPT
- Bore Style:
- Machined Bore with Keyway
- Clutch Air Chamber Volume When New:
- 5.360 cm³
- Clutch Air Chamber Volume When Worn Out:
- 14.010 cm³
- Materials Of Construction:
- Black Oxide
- Output Shaft Style:
- None
