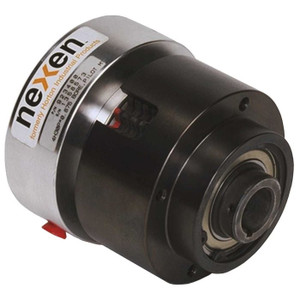

Nexen 950257 Air Engaged Shaft Mount Friction Clutch
NexenAir Engaged Shaft Mount Friction Clutch
M-800*35MM,PILOT MT,METRIC,LCO,NSB
Air Engaged, Keyed, Straight Bore, Shaft Mount, Pilot Output
Application Considerations: This Unit Has Shielded Bearings On The Air Chamber Pilot Mount Clutches Accept Customer Supplied Pulleys Or Sprockets Can Be Configured As A DRIVING Shaft Mounted Clutch-Brake With Disc And Caliper Listed Under Accessories In Left Column
Length=185.7 mm; Outer Diameter=204.7 mm; Pilot Size=100 mm; Input Bore Min Shaft Insertion=95 mm, From Pilot End Full From Air Chamber End; Bore Size=35 mm, Machined Bore with Keyway; Output Bolt Circle=120 mm; Output Bolt Hole Size=4 M8-1.25 mm, Holes @ 90°
Product Features=Air Engaged, Keyed, Straight Bore, Shaft Mount, Pilot Output
- Weight:
- 37 lbs
- Output Type:
- Pilot
- Min Sprocket Size:
- 40/38T, 50/31T, 60/26T, 80/21T
- Mounting Style:
- Shaft
- Engagement Method:
- Air
- Release Method:
- Spring
- Max Speed:
- 1800 RPM
- Drive Inertia:
- 185.07 kgcm²
- Shaft Inertia:
- 372.35 kgcm²
- Backlash:
- 0.44 °
- Open Or Enclosed Design:
- Open
- Primary Finish:
- Black Oxide
- Min Ambient Temperature:
- 0 °C
- Max Ambient Temperature:
- 66 °C
- CE Certified:
- CE
- RoHS Compliant:
- RoHS
- Bore Details:
- Straight With Keyway And 2 Setscrews
- Max Static Clutch Torque:
- 54 Nm
- Clutch Facing Type:
- Low Coefficient
- Clutch Facing Edge Color Code:
- Green
- Approximate Clutch Facing Life:
- 1371 kWhr
- Clutch Facing Effective Area:
- 197.6 cm²
- Max Clutch Continuous Thermal Dissipation:
- 0.75 kW
- Clutch Heat Sink Capacity:
- 149000 Joule
- Clutch Peak Thermal Input Rate:
- 20.60 kW
- Max Operating Pressure:
- 6.0 bar
- Min Engagement Pressure:
- 0.3 bar
- Inlet Size:
- 0.250 BSPT
- Bore Style:
- Machined Bore with Keyway
- Clutch Air Chamber Volume When New:
- 18.861 cm³
- Clutch Air Chamber Volume When Worn Out:
- 10.320 cm³
- Materials Of Construction:
- Black Oxide
- Output Shaft Style:
- None
