Nexen 964287 Air Engaged Shaft End Mount Clutch
NexenAir Engaged Shaft End Mount Clutch

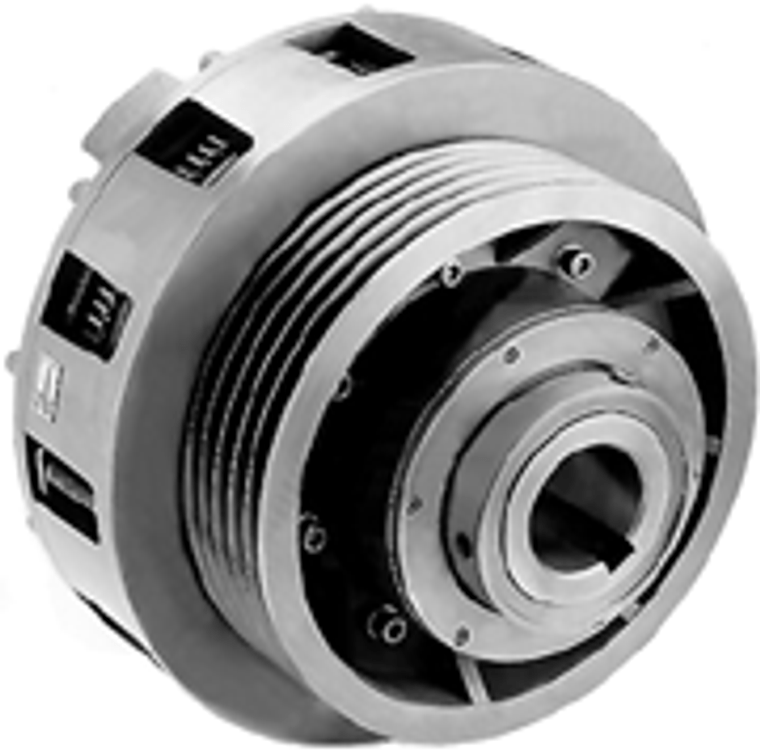

DFC-1650*CLUTCH,3.000 BORE,NSB
Air Engaged, Straight Bore, Shaft End Mount, Pilot Output, Rotary Air Union, High Torque And Thermal
Application Considerations: Nexen Can Provide Hubs Bored To Size For An Additional Charge Sheaves Sold Separately, See Accessories In Left Column Pilot Mount Clutches Accept Customer Supplied Pulleys Or Sprockets
Length=19.27 in; Outer Diameter=18.85 in; Pilot Size=9.250 in; Bore Size=3.000 in, Machined Bore with Keyway; Output Bolt Circle=10.375 in; Output Bolt Hole Size=12 0.500-13 in, Holes @ 30°
Product Features=Air Engaged, Straight Bore, Shaft End Mount, Pilot Output, Rotary Air Union, High Torque And Thermal
- Weight:
- 373 lbs
- Output Type:
- Pilot
- Mounting Style:
- Shaft
- Engagement Method:
- Air
- Release Method:
- Spring
- Max Speed:
- 1200 RPM
- Drive Inertia:
- 10000 lbin²
- Open Or Enclosed Design:
- Open
- Primary Finish:
- Black Oxide
- Min Ambient Temperature:
- 32 °F
- Max Ambient Temperature:
- 150 °F
- CE Certified:
- CE
- RoHS Compliant:
- RoHS
- Bore Details:
- Straight
- Max Static Clutch Torque:
- 36000 inlb
- Max Static Torque:
- 30600 inlb
- Clutch Facing Type:
- Standard Coefficient
- Clutch Facing Edge Color Code:
- Red
- Approximate Clutch Facing Life:
- 10625 hphr
- Clutch Facing Effective Area:
- 227.0 in²
- Max Clutch Continuous Thermal Dissipation:
- 8.00 hp
- Clutch Heat Sink Capacity:
- 870000 ftlb
- Clutch Peak Thermal Input Rate:
- 204.00 hp
- Max Operating Pressure:
- 80 psi
- Min Engagement Pressure:
- 10 psi
- Inlet Size:
- 0.750 NPT
- Bore Style:
- Machined Bore with Keyway
- Clutch Air Chamber Volume When New:
- 22.150 in³
- Clutch Air Chamber Volume When Worn Out:
- 50.455 in³
- Materials Of Construction:
- Black Oxide
- Output Shaft Style:
- None
