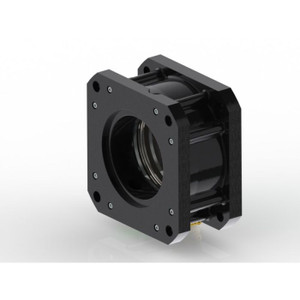

Nexen 964892 Spring Engaged Ball Screw Brake
NexenSpring Engaged Ball Screw Brake
BSB-4-23.0-96.0-115.0-10.0-NO-STD,SENSOR,EDW
Spring Engaged, Zero Backlash, Coupling Required, Sensor
Configuration Notes: This Product Has Engagement, Disengagement, And Wear Sensors, Requires A Coupling Found In Accessories To The Left Spring Engaged, Zero Backlash, Low Inertia, and High Torque Includes Quick Exhaust Valve For Quick Braking Response Contact Nexen For Other Mounting Flange Configurations Order Coupling And Control Valve From Accessories To The Left
Length=108.0 mm; Bore Size=12.000 to 32.000 mm Bore Nexen Couplings Available, Sold Separately; Input Bore Diameter=12 to 32 mm, See Couplings; Input Bolt Hole Size=10.0 mm; Input Pilot Diameter=96.0 mm; Input Pilot Depth=3.5 mm; Output Pilot Diameter=95.0 mm; Output Pilot Height=2.3 mm; Output Bolt Hole Size=10.0 mm; Min Output Bolt Circle Diameter=115 mm; Max Output Bolt Circle Diameter=150 mm; Max Angular MisAlignment=0.8 °; Max Axial Float=± 2 mm; Max Lateral MisAlignment=0.10 mm
Product Features=Spring Engaged, Zero Backlash, Coupling Required, Sensor; Restrictions=Not Recommended For Cyclic Dynamic Braking; Braking Capability=E-Stop, Holding
- Weight:
- 10 lbs
- Mounting Style:
- Motor or Reducer
- Anti Rotation Style:
- Flange
- Engagement Method:
- Spring
- Release Method:
- Air
- Max Speed:
- 10000 RPM
- Shaft Inertia:
- 3.1 kgcm²
- Torsional Rigidity:
- 9750 Nm/Rad, With Coupling
- Backlash:
- 0 ArcSec
- Open Or Enclosed Design:
- Enclosed
- Primary Finish:
- Black Anodized
- Static b10/b10d Cycle Life:
- 1000000/2000000
- Min Ambient Temperature:
- 32 °F
- Max Ambient Temperature:
- 150 °F
- CE Certified:
- CE
- RoHS Compliant:
- RoHS
- IEC IP Rating:
- IP67
- Bore Details:
- Straight Bore
- Min Static Brake Torque:
- 22 Nm
- Approximate Engagement Response Time:
- 50 ms
- Approximate Release Response Time:
- 80 ms
- Max Allowable Pressure:
- 8.3 bar
- Min Release Pressure:
- 5.5 bar
- Inlet Size:
- 0.125 NPT
- Coupling Type:
- Elastomer/Clamp Collar
- Input Power:
- Proximity Sensor 10-30 VDC
- Number of Sensors:
- 3
- Bore Style:
- Bore Accepts Nexen Coupling
- Communication Protocol:
- IO-Link v1.0
- Materials Of Construction:
- Black Anodized
- Output Shaft Style:
- None
- Sensor Function:
- Disengagement, Engagement, Facing Wear
- Sensor 1 Function:
- Engagement, Integral, factory set
- Sensor 1 Output:
- Normally Open PNP
- Sensor 1 Type:
- Inductive Proximity
- Sensor 3 Function:
- Facing Wear, Integral, factory set
- Sensor 3 Output:
- Normally Open PNP
- Sensor 3 Type:
- Inductive Proximity
- Sensor 2 Function:
- Disengagement, Integral, factory set
- Sensor 2 Output:
- Normally Open PNP
- Sensor 2 Type:
- Inductive Proximity
- Backlash Rating:
- Zero Backlash
- QN-QUOTE-REQUEST:
- true
