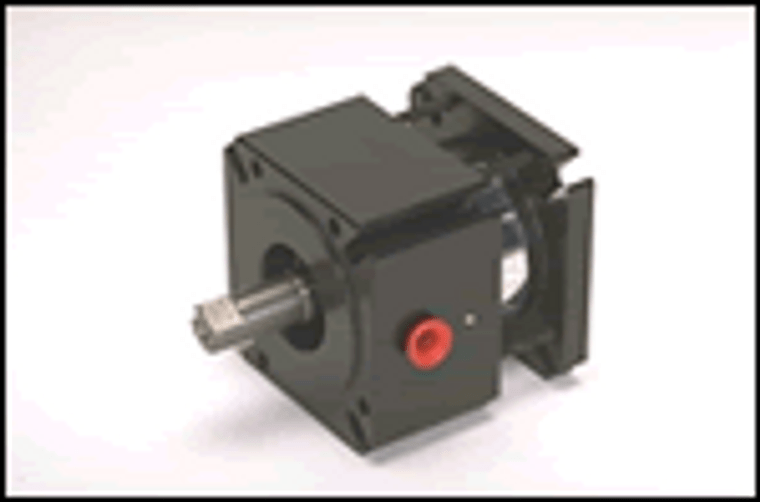

Nexen 964951 Air Engaged Servomotor Brake
NexenAir Engaged Servomotor Brake
SBPA5-NEMA,143/145TC-NO-STD
Air Engaged, Zero Backlash, Clamp Collar Coupling
Includes Quick Exhaust Valve For Improved Engagement Response For Control Valves, See Accessories
Bore Size=Machined Bore with Clamp Collar and no Keyway; Input Bore Diameter=0.875 in; Input Keyway=N/A; Output Shaft Diameter=0.875 in; Output Bore Diameter=0.875 in; Output Shaft Length=2.12 in; Output Keyway=10W x 8H mm mm; Input Bolt Circle Diameter=5.875 in; Input Pilot Diameter=4.500 in; Output Pilot Diameter=4.500 in; Output Bolt Circle=5.875 in
Product Features=Air Engaged, Zero Backlash, Clamp Collar Coupling; Restrictions=Not Recommended For Cyclic Dynamic Braking; Braking Capability=E-Stop, Holding
- Weight:
- 17 lbs
- Mounting Style:
- Motor or Reducer
- Anti Rotation Style:
- Flange
- Engagement Method:
- Air
- Release Method:
- Spring
- Max Speed:
- 10000 RPM
- Overhung Load Capacity:
- N/A, Ask Nexen
- Backlash:
- 0 ArcSec
- Open Or Enclosed Design:
- Enclosed
- Primary Finish:
- Black Acrylic Paint
- Static b10/b10d Cycle Life:
- 1000000/2000000
- Min Ambient Temperature:
- 32 °F
- Max Ambient Temperature:
- 150 °F
- CE Certified:
- CE
- RoHS Compliant:
- RoHS
- IEC IP Rating:
- IP67
- Bore Details:
- Straight Bore/Shaft
- Input Shaft Securement:
- Clamp Collar
- Output Shaft Features:
- 2 Flats @ 180°
- Min Static Brake Torque:
- 398 inlb
- Max Brake Continuous Thermal Dissipation:
- 0.20 hp
- Max Allowable Pressure:
- 8.3 bar
- Inlet Size:
- 0.125 NPT
- Coupling Type:
- Clamp Collar
- Safety Rating:
- Standard
- Bore Style:
- Machined Bore with Clamp Collar and no Keyway
- Materials Of Construction:
- Black Acrylic Paint
- Output Shaft Style:
- Shaft with Keyway
- Backlash Rating:
- Zero Backlash
