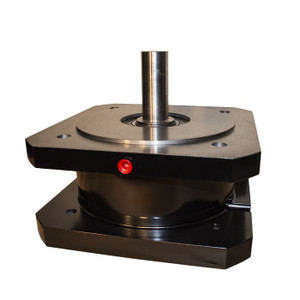

Nexen 965025 Spring Engaged Servomotor Brake
NexenSpring Engaged Servomotor Brake
SBP7-1.375-3.37-8.50-.50-7.25--038-NO-STD,SPCL
Spring Engaged, Zero Backlash, Flange Mount, Input Clamp Collar
Includes Quick Exhaust Valve For Improved Engagement Response For Control Valves, See Accessories
Body Length=102.3 mm; Bore Size=Machined Bore with Clamp Collar and no Keyway; Input Bore Diameter=38 mm; Output Shaft Diameter=1.375 in; Output Shaft Length=3.37 in; Input Bolt Circle Diameter=215 mm; Input Pilot Diameter=180 mm; Input Pilot Depth=6.1 mm; Output Pilot Diameter=8.500 in; Output Pilot Height=0.25 in; Output Bolt Circle=7.25 in
Product Features=Spring Engaged, Zero Backlash, Flange Mount, Input Clamp Collar; Restrictions=Not Recommended For Cyclic Dynamic Braking; Braking Capability=E-Stop, Holding
- Weight:
- 38.8 lbs
- Mounting Style:
- Motor or Reducer
- Anti Rotation Style:
- Flange
- Engagement Method:
- Spring
- Release Method:
- Air
- Max Speed:
- 5000 RPM
- Shaft Inertia:
- 0.00333 kgm²
- Torsional Rigidity:
- 55300 Nm/Rad
- Backlash:
- 0 ArcSec
- Open Or Enclosed Design:
- Enclosed
- Primary Finish:
- Black Acrylic Paint
- Static b10/b10d Cycle Life:
- 1000000/2000000
- Min Ambient Temperature:
- 32 °F
- Max Ambient Temperature:
- 150 °F
- CE Certified:
- CE
- RoHS Compliant:
- RoHS
- IEC IP Rating:
- IP67
- Input Frame Size:
- N/A
- Output Frame Size:
- NEMA 213TC 215TC
- Bore Details:
- Straight Bore/Shaft
- Min Static Brake Torque:
- 125 Nm
- Approximate Engagement Response Time:
- 85 ms
- Approximate Release Response Time:
- 145 ms
- Max Allowable Pressure:
- 8.3 bar
- Min Release Pressure:
- 5.5 bar
- Air Chamber Volume:
- 48.834 cm³
- Inlet Size:
- 0.125 NPT
- Safety Rating:
- Standard
- Bore Style:
- Machined Bore with Clamp Collar and no Keyway
- Materials Of Construction:
- Black Acrylic Paint
- Output Shaft Style:
- Shaft with Keyway
- Backlash Rating:
- Zero Backlash
- QN-QUOTE-REQUEST:
- true
