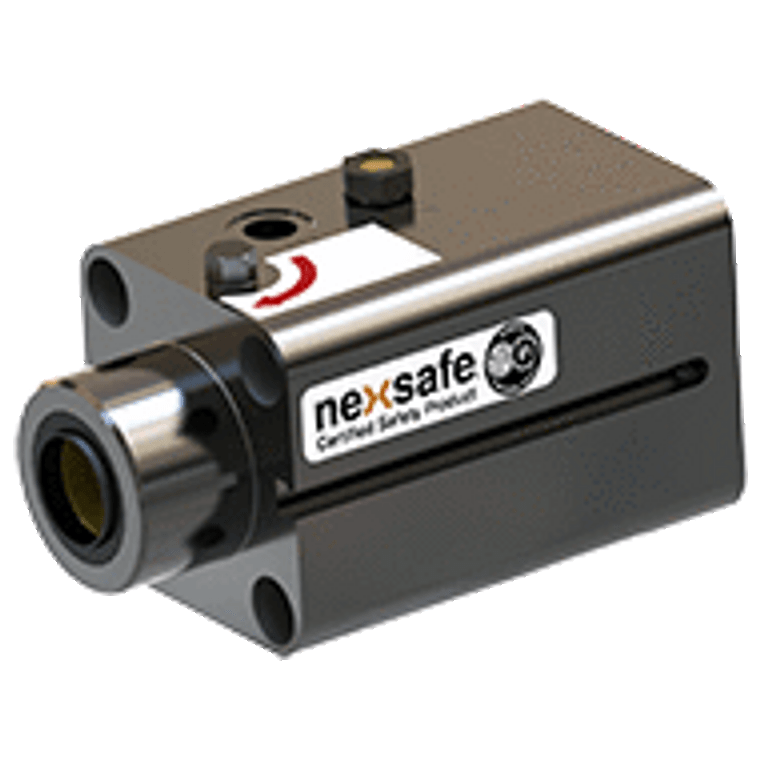

Nexen 966026 Spring Engaged Stand Alone Rod Lock
NexenSpring Engaged Stand Alone Rod Lock
SAFE-RLSSB*063-020-S-A-MR
Safety Rated, Spring Engaged, Metric Guide Rod Mount, Sensor Slot, Manual Release
Application Considerations: Spring Engaged, Manual Release, Low Backlash, IP67 Rated, No Rod Displacement On Engagement, Compact, NexSafe Certified Safety Product Mounting Hardware Not Provided Multiple Springs For More Reliable Holding Performance Contactless Locking Mode Sensing Optional Can Be Used For Infrequent Dynamic E-Stops. Multiple Rod Locks Can Be Stacked For Higher Holding Forces.
Length=118.5 mm; Rod Diameter=20 mm
Product Features=Safety Rated, Spring Engaged, Metric Guide Rod Mount, Sensor Slot, Manual Release; Restrictions=Not For Use In Cyclic Dynamic Stopping Applications, Rod Rotation Not Allowed When Locked, Consult Nexen For Use In Wash-Down Or Humid Applications
- Weight:
- 2.5 lbs
- Mounting Style:
- Stand Alone
- Engagement Method:
- Spring
- Release Method:
- Air
- Backlash:
- < 0.20 mm
- Open Or Enclosed Design:
- Enclosed
- Primary Finish:
- Black Anodized
- Static b10/b10d Cycle Life:
- 1000000/2000000
- Min Ambient Temperature:
- 0.5 °C
- Max Ambient Temperature:
- 60 °C, Continuous
- Max Intermittent Ambient Temperature:
- 100 °C, Intermittent
- CE Certified:
- CE
- RoHS Compliant:
- RoHS
- IEC IP Rating:
- IP67
- Manual Release Feature:
- Yes
- Manual Release Actuation Torque:
- 12 Nm, 1/4 Turn Auto Reset
- Approximate Engagement Response Time:
- 45 ms
- Max Operating Pressure:
- 6.9 bar
- Min Release Pressure:
- 4.1 bar
- Air Chamber Volume:
- 13.440 cm³
- Inlet Size:
- 0.125 BSPP
- Linear Holding Force:
- 2225 N
- Rod Requirements:
- HRC60 Or Hard Chrome Plated Minimum Of 20 Microns, h8 Tolerance, Roughness 1.6 Microns
- Approximate Life:
- More Than 5000, Manual Releases
- Safety Rating:
- NexSafe Certified
- Materials Of Construction:
- Black Anodized
- Number of Slots for Operating Mode Sensors:
- 1 Sensor Slot, None included, sold separately as accessory
