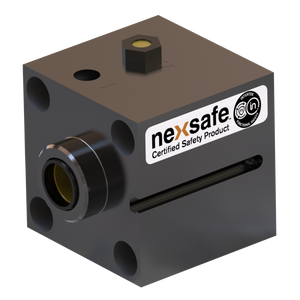

Nexen 966192 Spring Engaged Stand Alone Rod Lock
NexenSpring Engaged Stand Alone Rod Lock
SAFE-RLSSB*500-100-S-A-MR,2 SLOTS
Safety Rated, Spring Engaged, Imperial Guide Rod Mount, Sensor Slot, Manual Release
Configuration Notes: Special With Two Sensor T Slots Application Considerations: Spring Engaged, Manual Release, Low Backlash, IP67 Rated, No Rod Displacement On Engagement, Compact, NexSafe Certified Safety Product Includes Sleeve Nut Cylinder Mounting Bolts, Longer Cylinder Rod Required Multiple Springs For More Reliable Holding Performance Optional Locking Mode Sensor For Control System Feedback Can Be Used For Infrequent Dynamic E-Stops. Multiple Rod Locks Can Be Stacked For Higher Holding Forces.
Length=5.88 in; Rod Diameter=1.000 in
Product Features=Safety Rated, Spring Engaged, Imperial Guide Rod Mount, Sensor Slot, Manual Release; Restrictions=Not For Use In Cyclic Dynamic Stopping Applications, Rod Rotation Not Allowed When Locked, Consult Nexen For Use In Wash-Down Or Humid Applications
- Weight:
- 18.2 lbs
- Mounting Style:
- Stand Alone
- Engagement Method:
- Spring
- Release Method:
- Air
- Backlash:
- < 0.008 in
- Open Or Enclosed Design:
- Enclosed
- Primary Finish:
- Black Anodized
- Static b10/b10d Cycle Life:
- 1000000/2000000
- Min Ambient Temperature:
- 33 °F
- Max Ambient Temperature:
- 150 °F, Continuous
- Max Intermittent Ambient Temperature:
- 212 °F, Intermittent
- CE Certified:
- CE
- RoHS Compliant:
- RoHS
- IEC IP Rating:
- IP67
- Manual Release Feature:
- Yes
- Manual Release Actuation Torque:
- 72 ftlb, 1/4 Turn Auto Reset
- Approximate Engagement Response Time:
- 150 ms
- Max Allowable Pressure:
- 120 psi
- Max Operating Pressure:
- 80 psi
- Min Release Pressure:
- 60 psi
- Air Chamber Volume:
- 11.500 in³
- Inlet Size:
- 0.250-18 NPTF
- Linear Holding Force:
- 1963 lbf
- Rod Requirements:
- HRC60 Or Hard Chrome Plated Minimum Of 20 Microns, h8 Tolerance, Roughness 1.6 Microns
- Approximate Life:
- More Than 5000, Manual Releases
- Safety Rating:
- NexSafe Certified
- Materials Of Construction:
- Black Anodized
- Number of Slots for Operating Mode Sensors:
- 1 Sensor Slot, None included, sold separately as accessory
