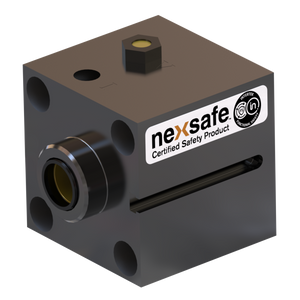

Nexen 966246 Spring Engaged Stand Alone Rod Lock
NexenSpring Engaged Stand Alone Rod Lock
SAFE-RLSSB*250-063-S-A-MR-2PNP2
Safety Rated, Spring Engaged, Imperial Guide Rod Mount, Mode Sensor, Manual Release
Configuration Notes: NexSafe Unit With 2 PNP Sensors Application Considerations: Spring Engaged, Manual Release, Low Backlash, IP67 Rated, No Rod Displacement On Engagement, Compact, NexSafe Certified Safety Product Mounting Brackets And Hardware Not Provided Multiple Springs For More Reliable Holding Performance Includes Locking Mode Sensors For Control System Feedback That Can Reach CAT4 Safety Certification With Two Rod Locks Or A Redundant Holding Device Can Be Used For Infrequent Dynamic E-Stops. Multiple Rod Locks Can Be Stacked For Higher Holding Forces.
Length=3.38 in; Body Length=2.88 in; Rod Diameter=0.625 in
Product Features=Safety Rated, Spring Engaged, Imperial Guide Rod Mount, Mode Sensor, Manual Release; Restrictions=Not For Use In Cyclic Dynamic Stopping Applications, Rod Rotation Not Allowed When Locked, Consult Nexen For Use In Wash-Down Or Humid Applications
- Weight:
- 3.35 lbs
- Mounting Style:
- Stand Alone
- Engagement Method:
- Spring
- Release Method:
- Air
- Backlash:
- < 0.008 in
- Open Or Enclosed Design:
- Enclosed
- Primary Finish:
- Black Anodized
- Static b10/b10d Cycle Life:
- 1000000/2000000
- Min Ambient Temperature:
- 33 °F
- Max Ambient Temperature:
- 150 °F, Continuous
- Max Intermittent Ambient Temperature:
- 212 °F, Intermittent
- CE Certified:
- CE
- RoHS Compliant:
- RoHS
- IEC IP Rating:
- IP67
- Manual Release Feature:
- Yes
- Manual Release Actuation Torque:
- 7 ftlb, 1/4 Turn Auto Reset
- Approximate Engagement Response Time:
- 45 ms
- Max Allowable Pressure:
- 120 psi
- Max Operating Pressure:
- 80 psi
- Min Release Pressure:
- 60 psi
- Air Chamber Volume:
- 1.260 in³
- Inlet Size:
- 0.125-27 NPTF
- Cable Length:
- 0.3 m
- Input Power:
- 10-30 VDC
- Sensor Connector:
- M8 x 1.0 Male
- Number of Sensors:
- 2
- Sensor Location:
- Both Sides
- Sensor Frequency:
- ? 1000 Hz
- Linear Holding Force:
- 491 lbf
- Rod Requirements:
- HRC60 Or Hard Chrome Plated Minimum Of 20 Microns, h8 Tolerance, Roughness 1.6 Microns
- Approximate Life:
- More Than 5000, Manual Releases
- Safety Rating:
- NexSafe Certified
- Materials Of Construction:
- Black Anodized
- Sensor Function:
- Disengagement, Engagement, Engagement or Disengagement
- Sensor 1 Function:
- Engagement or Disengagement, Depends on user installation
- Sensor 1 Output:
- Normally Open PNP
- Sensor 1 Type:
- Magneto-Resistive
- Sensor 2 Function:
- Engagement or Disengagement, Depends on user installation
- Sensor 2 Output:
- Normally Open PNP
- Sensor 2 Type:
- Magneto-Resistive
- Number of Slots for Operating Mode Sensors:
- 2 Sensor Slots, 2 Sensors included
- QN-QUOTE-REQUEST:
- true
