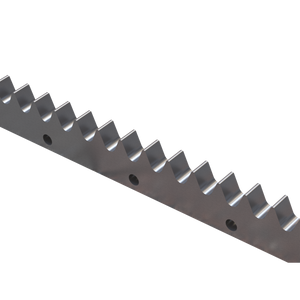

Nexen 966808 Universal Roller Pinion Rack
NexenUniversal Roller Pinion Rack
RPS40R-B1000U1U
Universal Grade, High Precision, Zero Backlash
Total System Performance Will Be The Lesser Of The Pinion And Rack Or Gear Combination See Pinion Options Under Accessories
Length=1000 mm
Product Features=Universal Grade, High Precision, Zero Backlash
- Weight:
- 40.8 lbs
- Primary Finish:
- Bare Steel
- Min Ambient Temperature:
- -5 °C
- Max Ambient Temperature:
- 40 °C
- CE Certified:
- CE
- RoHS Compliant:
- RoHS
- Product Weight:
- 13.2 kg
- Max Acceleration Thrust:
- 4500 N
- Max Average Thrust:
- 4500 N
- Max Static Linear Force:
- 4500 N
- Positional Accuracy:
- ± 50 µm
- Linear Repeatability:
- ± 10 µm
- Approximate Life:
- More Than 2000000, Roller Contacts Per Tooth At Rated Accuracy And Max Life Ratings
- Materials Of Construction:
- Uncoated Steel
- Max Linear Speed:
- 5 m/s
- RPS Size:
- 40
- RPS Width:
- B-Width, Only Compatible with B-Width Roller Pinions
- Backlash Rating:
- Zero Backlash
