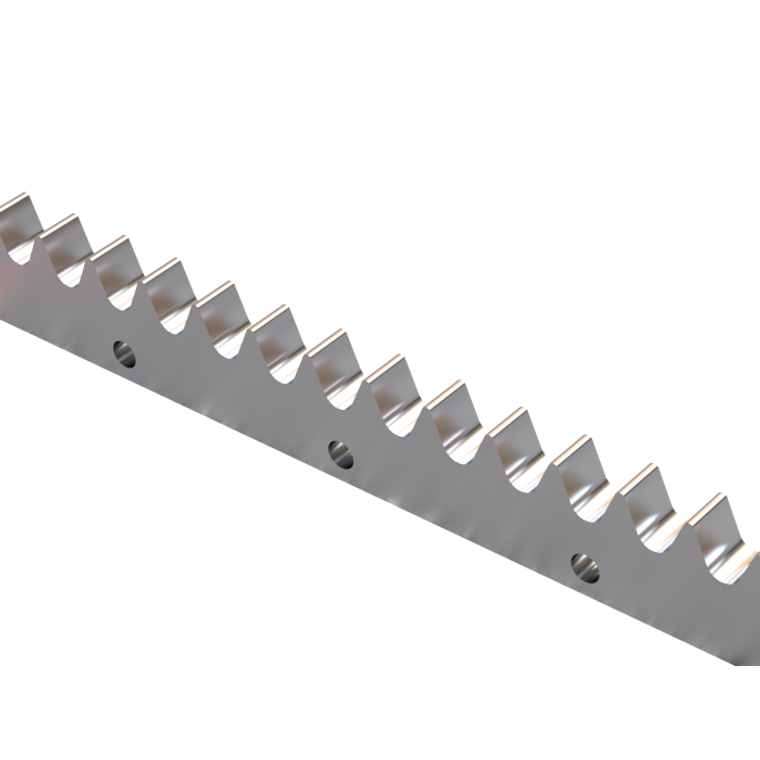

Nexen 966815 Universal Stainless Roller Pinion Rack
NexenUniversal Stainless Roller Pinion Rack
RPS40R-B1000X1U
Universal Stainless Grade, High Precision, Zero Backlash, Corrosion Resistant
Total System Performance Will Be The Lesser Of The Pinion And Rack Or Gear Combination See Pinion Options Under Accessories
Length=1000 mm
Product Features=Universal Stainless Grade, High Precision, Zero Backlash, Corrosion Resistant
- Primary Finish:
- Stainless Steel
- Min Ambient Temperature:
- -5 °C
- Max Ambient Temperature:
- 40 °C
- CE Certified:
- CE
- RoHS Compliant:
- RoHS
- Product Weight:
- 13.2 kg
- Max Acceleration Thrust:
- 4500 N
- Max Average Thrust:
- 4500 N
- Max Static Linear Force:
- 4500 N
- Positional Accuracy:
- ± 50 µm
- Linear Repeatability:
- ± 10 µm
- Approximate Life:
- More Than 2000000, Roller Contacts Per Tooth At Rated Accuracy And Max Life Ratings
- Materials Of Construction:
- Uncoated Stainless Steel
- Max Linear Speed:
- 5 m/s
- RPS Size:
- 40
- RPS Width:
- B-Width, Only Compatible with B-Width Roller Pinions
- Backlash Rating:
- Zero Backlash
