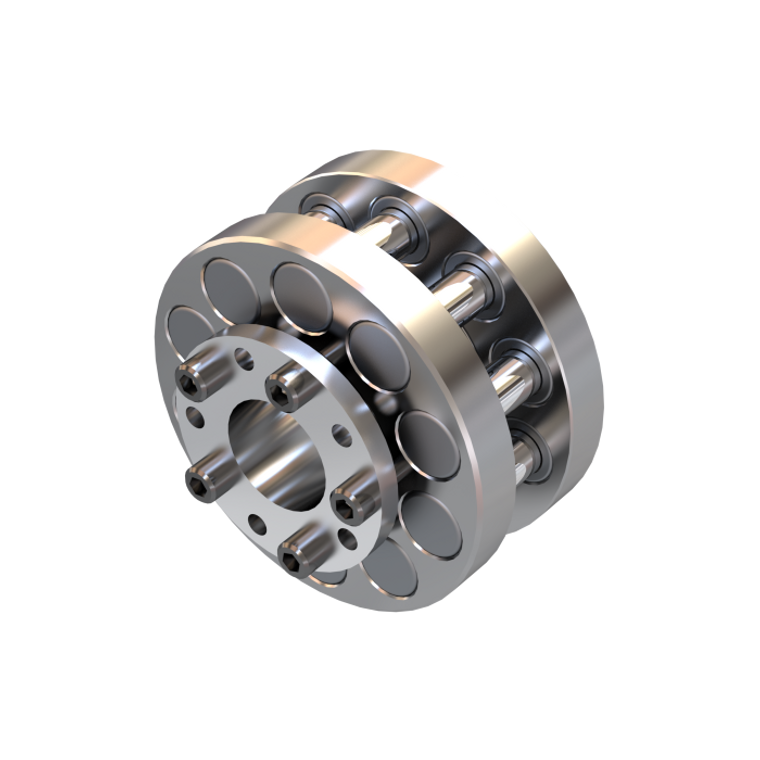

Nexen 966823 Shaft Mount Roller Pinion
NexenShaft Mount Roller Pinion
RPS40P-B055.00MMP3
High Precision, Zero Backlash, Shaft Mount, Keyless Compression Coupling
Total System Performance Will Be The Lesser Of The Pinion And Rack Or Gear Combination
Length=96.5 mm; Body Length=96.5 mm; Outer Diameter=190.0 mm; Bore Size=55 mm; Distance Per Revolution=480 mm; Meshing Pitch Circle Diameter=152.8 mm
Product Features=High Precision, Zero Backlash, Shaft Mount, Keyless Compression Coupling
- Weight:
- 33.09 lbs
- Max Speed:
- 625 RPM
- Primary Finish:
- Nickel Plated
- Min Ambient Temperature:
- -5 °C
- Max Ambient Temperature:
- 40 °C
- CE Certified:
- CE
- RoHS Compliant:
- RoHS
- Bore Details:
- Straight Keyless Bore With Mechanical Compression Coupling
- Max Dynamic Torque:
- 1375.2 Nm
- Max Static Torque:
- 1976.4 Nm
- Max Dynamic Torque At Min Life:
- 1375.2 Nm
- Max Dynamic Torque For Max Life:
- 1146 Nm
- Max Acceleration Thrust:
- 6000 N
- Max Average Thrust:
- 6000 N
- Max Static Linear Force:
- 12000 N
- Rotational Inertia:
- 0.0598 kgm²
- Approximate Life:
- 60000000, Contacts Per Roller Or Full Revolutions At Max Life Rated Performance, See Tech Data Sheet For Full Info
- Materials Of Construction:
- Nickel Plated Steel Body Zinc-Nickel Plated Coupling And Bearing Cups Zinc Plated Fasteners Bare Steel Rollers
- Max Linear Speed:
- 5 m/s
- Pinion Mounting Style:
- Shaft Mount
- RPS Size:
- 40
- RPS Width:
- B-Width, Only Compatible with B-Width Racks or Gears
- Backlash Rating:
- Zero Backlash
