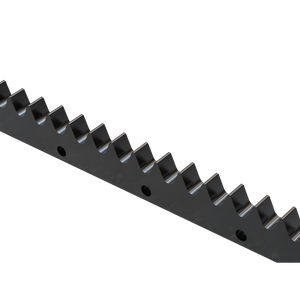

Nexen 966854 Endurance Roller Pinion Rack
NexenEndurance Roller Pinion Rack
RPS40R-B1000E1U
Endurance Grade, High Precision, Zero Backlash, Corrosion Resistant, Lube Free Operation Possible
Total System Performance Will Be The Lesser Of The Pinion And Rack Or Gear Combination See Pinion Options Under Accessories
Length=1000 mm
Product Features=Endurance Grade, High Precision, Zero Backlash, Corrosion Resistant, Lube Free Operation Possible
- Weight:
- 36 lbs
- Primary Finish:
- Nitrided
- Min Ambient Temperature:
- -5 °C
- Max Ambient Temperature:
- 40 °C
- CE Certified:
- CE
- RoHS Compliant:
- RoHS
- Product Weight:
- 13.2 kg
- Max Acceleration Thrust:
- 6000 N
- Max Average Thrust:
- 6000 N
- Max Static Linear Force:
- 12000 N
- Positional Accuracy:
- ± 80 µm
- Linear Repeatability:
- ± 20 µm
- Approximate Life:
- More Than 30000000, Roller Contacts Per Tooth At Rated Accuracy And Max Life Ratings
- Materials Of Construction:
- Nitrided
- Max Linear Speed:
- 5 m/s
- RPS Size:
- 40
- RPS Width:
- B-Width, Only Compatible with B-Width Roller Pinions
- Backlash Rating:
- Zero Backlash
- QN-QUOTE-REQUEST:
- true
