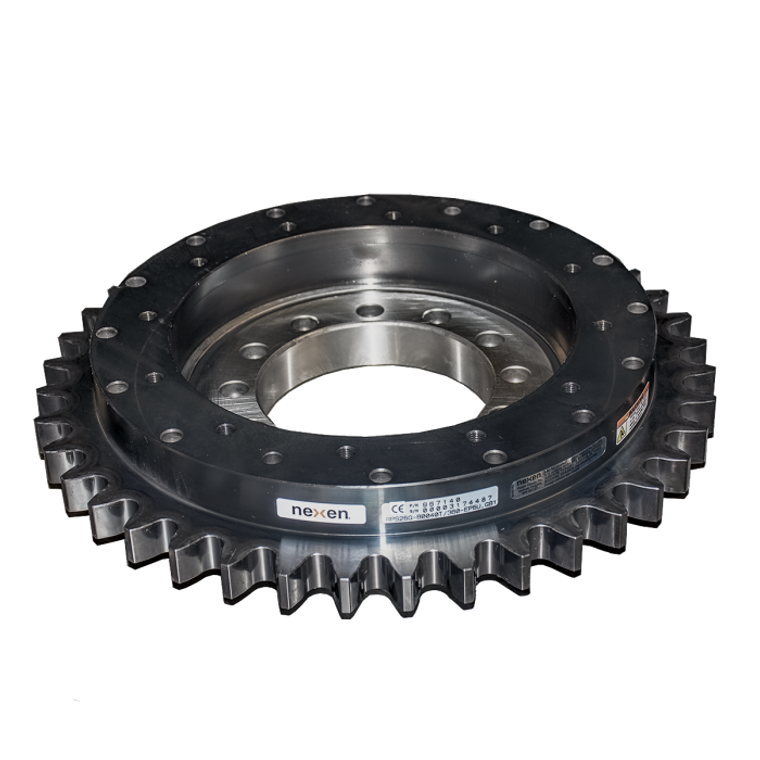

Nexen 967259 Roller Pinion Geared Bearing
NexenRoller Pinion Geared Bearing
RPS10G-B0104T/360-EP5U,GB178
High Precision, Zero Backlash, Integral Bearing, Full Ring Gear, External Tooth, Lube Free Operation Possible
Total System Performance Will Be The Lesser Of The Pinion And Rack Or Gear Combination Includes RPG Gear And Cross Roller Bearing, See Pinion Options Under Accessories
Length=21.25 in; Outer Diameter=328 mm; Inner Diameter=115 mm
Product Features=High Precision, Zero Backlash, Integral Bearing, Full Ring Gear, External Tooth, Lube Free Operation Possible; Restrictions=This Gear Can Run Without Lubrication, See Specifications in Datasheet
- Primary Finish:
- Black Oxide
- Min Ambient Temperature:
- -5 °C
- Max Ambient Temperature:
- 40 °C
- CE Certified:
- CE
- RoHS Compliant:
- RoHS
- Max Static Torque:
- 63 Nm
- Max Dynamic Torque At Min Life:
- 41.6 Nm
- Max Dynamic Torque For Max Life:
- 41.6 Nm
- Product Weight:
- 13.0 kg
- One Way Repeatability:
- ± 6.5 ArcSec
- Angular Backlash:
- 0 ArcSec
- Max Output Speed:
- 231 RPM
- Moment Of Inertia Inner:
- 0.015 kgm²
- Moment Of Inertia Outer:
- 0.14 kgm²
- Max Dynamic Axial Load At Max Life And Avg Torque:
- 42.9 kN
- Max Dynamic Radial Load At Max Life And Avg Torque:
- 28.6 kN
- Max Dynamic Moment Load At Max Life And Avg Torque:
- 2.5 kNm
- Tooth Orientation:
- External Teeth
- Bearing Number:
- 178
- Approximate Life:
- More Than 30000000, Roller Contacts Per Tooth At Rated Accuracy And Max Life Ratings
- Gear To Pinion Ratio:
- 10.4 :1
- Gear Or Segment Angle:
- 360 °
- Materials Of Construction:
- Gear: Black Oxide
- One Way Positional Accuracy:
- ± 39 ArcSec
- RPS Size:
- 10
- RPS Width:
- B-Width, Only Compatible with B-Width Roller Pinions
- Backlash Rating:
- Zero Backlash
