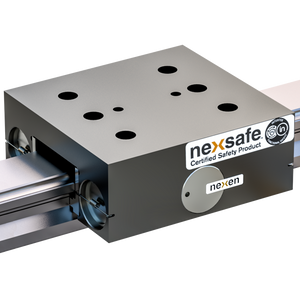

Nexen 968166 Spring Engaged Profile Rail Brake
NexenSpring Engaged Profile Rail Brake
SAFE-RB35B-S/P-S-STAR-18XX
Safety Rated, Spring Engaged, Air Released
Application Considerations: High Holding Force, Low Backlash, Zero Maintenance, NexSafe Certified Safety Product Can Be Used For Infrequent Emergency Stops For Other Guide Rail Manufacturers Or Guide Rail Series Contact Nexen
Length=106.0 mm
Product Features=Safety Rated, Spring Engaged, Air Released; Restrictions=Suitable For Infrequent E-Stops, Not For Use In Cyclic Dynamic Braking Applications
- Weight:
- 4.86 lbs
- Engagement Method:
- Spring
- Release Method:
- Air
- Backlash:
- < 0.20 mm
- Open Or Enclosed Design:
- Open
- Primary Finish:
- Black Oxide
- Static b10/b10d Cycle Life:
- 2000000/4000000
- Min Ambient Temperature:
- 33 °F
- Max Ambient Temperature:
- 150 °F
- Max Intermittent Ambient Temperature:
- 212 °F
- CE Certified:
- CE
- RoHS Compliant:
- RoHS
- Approximate Engagement Response Time:
- 70 ms
- Product Weight:
- 2.04 kg
- Max Operating Pressure:
- 6.9 bar
- Min Release Pressure:
- 5.5 bar
- Air Chamber Volume:
- 16.600 cm³
- Inlet Size:
- 4 mm, Plastic Tubing Fitting Screwed Into A M6 Port
- Manufacturer:
- Bosch, SKF, Star
- Series:
- Star(18.. 05, 07)
- Size:
- 35
- Linear Holding Force:
- 1600 N
- Safety Rating:
- NexSafe Certified
- Materials Of Construction:
- Black Oxide
