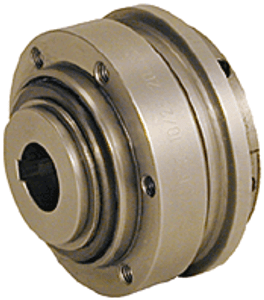

MTL Mechanical Torque Limiter MTL60-2CC-SP-30MM-25/80,SPCL
View AllClose
| If You Don't See Exactly What You Need Refer To The Technical Data Sheet In The Left Hand Column Of This Page For The Range Of Options | |
| Features: | See Technical Data Sheet Under Resources In Left Column For Ordering Details |
| Comments: | Can Be Adjusted While Installed With Index Gage And Spanner Wrench Listed Under Accessories To The Left |
| Comments: | This Unit Automatically Reengages Once The Problem Is Corrected |
| Open Or Enclosed Design: | Open |
| Drive Arrangement: | Coupling |
| Bore Size: | 30/30 mm |
| Input Keyway: | 8 x 7 mm |
| Bore Style: | "Straight, No Keyways" |
| Maximum Static Clutch Torque: | 80 Nm |
| Minimum Static Clutch Torque: | 25 Nm |
| Torque Range: | 25 - 80 Nm |
| Factory Torque Setting: | 25 Nm |
| Backlash: | 0.00 ArcSec |
| Number Of Engagement Positions: | 6 @ 60° |
| Shaft Inertia: | 5.00 kgcm² |
| Max Rpm: | 3500 |
| Output Keyway: | 8 x 7 mm |
| Mounting Style: | Clamp Collars With Keyways |
| Temperature Range: | "-30 - 120 °C Nominal, 150 °C Intermittent Peak" |

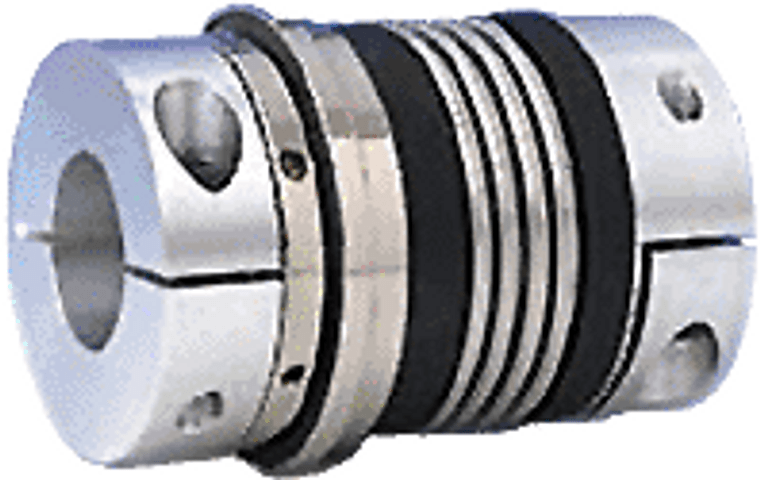

| Coupling Brand/Type: | Stainless Steel Bellows |
| Maximum Angular Misalignment: | 1.0° |
| Maximum Lateral Misalignment: | 0.20 mm |
| Torsional Rigidity: | "76,000 Nm/Rad" |
| Ratings: | "CE, And RoHS" |
| Finish: | "Bare Aluminum And Black Oxide, Corrosion Resistant Per DIN 50021 Salt 140 Hours, Or Stainless Steel" |
| "Options Available: Bore Size, Keyway, Torque Range, Factory Torque Setting, # Of Engagemet Positions, Sealed, And Stainless Steel" | |
| Shipping Weight: | 3.0 LB |
