Nexen 976275-200 MTL Mechanical Torque Limiter MTL500-PMK-MP-1.438-200/350
Nexen
$2,593.00

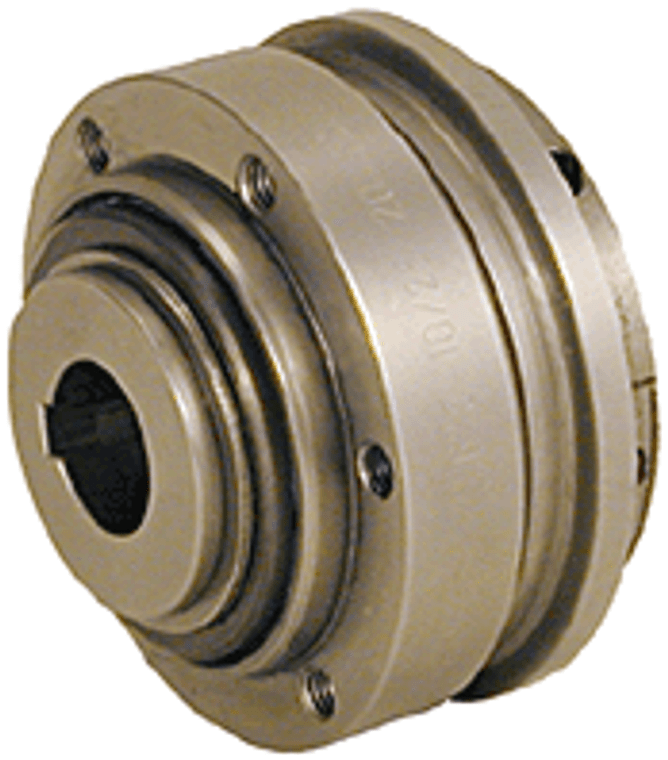

MTL Mechanical Torque Limiter MTL500-PMK-MP-1.438-200/350
| If You Don't See Exactly What You Need Refer To The Technical Data Sheet In The Left Hand Column Of This Page For The Range Of Options | |
| Features: | "High Performance, Zero Backlash, Adjustable, Mechanical Torque Limiter" |
| Comments: | Can Be Adjusted While Installed With Index Gage And Spanner Wrench A55012 Provided By www.jwwinco.com http://bit.ly/2YNWR9V |
| Comments: | Double Bearing Support For Pulleys And Sprockets |
| Open Or Enclosed Design: | Open |
| Drive Arrangement: | Pilot Mount |
| Bore Size: | 1.438 in. |
| Input Keyway: | 0.375 x 0.375 x 2.81L in. |
| Bore Style: | "Straight, Keyed" |
| Pilot Size: | 90 mm |
| Pilot Or Drive Flange Bolt Circle Data: | "6, M8-1.25 Holes @ 60° On A 100 mm Bolt Circle" |
| Pilot Maximum Radial Load: | 5600 N |
| Torque Range: | 200 - 350 Nm |
| Factory Torque Setting: | 200 Nm |
| Backlash: | 0.00 ArcSec |
| Number Of Engagement Positions: | 6 @ 60° |
| Minimum Sprocket Size: | "50/37T, 60/31T, 80/27T, 100/22T, 120/18T" |
| Shaft Inertia: | 86.00 kgcm² |
| Max Rpm: | 2200 |
| Mounting Style: | Straight Bore With Keyway |
| Temperature Range: | "-30 - 120 °C Nominal, 150 °C Intermittent Peak" |
| Ratings: | "CE, And RoHS" |
| Finish: | "Bare Aluminum And Black Oxide, Corrosion Resistant Per DIN 50021 Salt 140 Hours, Or Stainless Steel" |
| "Options Available: Bore Size, Keyway, Torque Range, Factory Torque Setting, # Of Engagemet Positions, Sealed, And Stainless Steel" | |
| Shipping Weight: | 11.2 LB |
