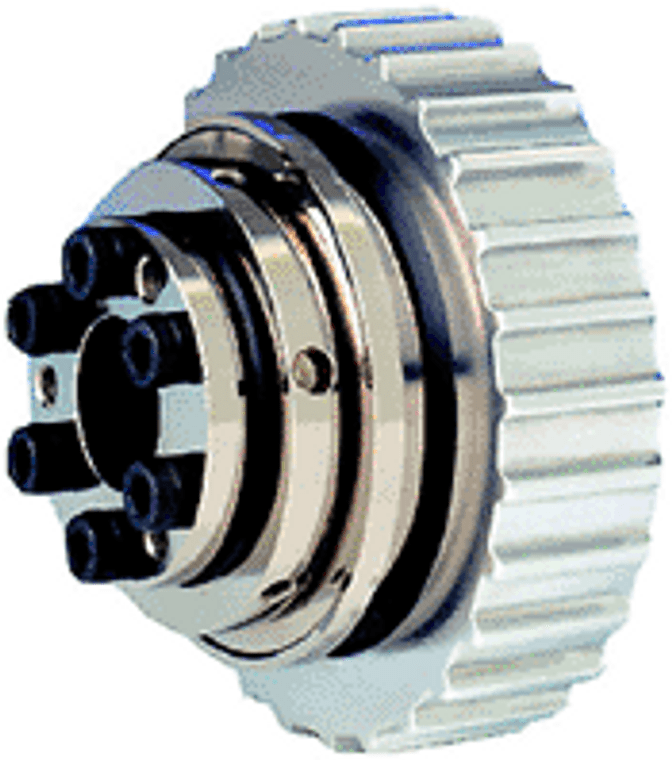

MTL Mechanical Torque Limiter MTL2500-PMT-FD-75MM-1400/2200
View AllClose
If You Don't See Exactly What You Need Refer To The Technical Data Sheet In The Left Hand Column Of This Page For The Range Of Options | |
Features: | "High Performance, Zero Backlash, Adjustable, Mechanical Torque Limiter" |
Comments: | Can Be Adjusted While Installed With Index Gage And Spanner Wrench A55053 Provided By www.jwwinco.com http://bit.ly/2YNWR9V |
Comments: | Double Bearing Support For Pulleys And Sprockets |
Open Or Enclosed Design: | Open |
Drive Arrangement: | Pilot Mount |
Bore Size: | 75 mm |
Bore Style: | "Straight, No Keyways" |
Pilot Size: | 168 mm |
Pilot Or Drive Flange Bolt Circle Data: | "6, M16 Holes @ 60° On A 202 mm Bolt Circle" |
Pilot Maximum Radial Load: | 20000 N |
Maximum Static Clutch Torque: | 2200 Nm |
Minimum Static Clutch Torque: | 1400 Nm |
Torque Range: | 1400 - 2200 Nm |
Factory Torque Setting: | 1400 Nm |
Backlash: | 0.00 ArcSec |
Number Of Engagement Positions: | 6 @ 60° |
Minimum Sprocket Size: | "80/25T, 100/29T, 120/25T, 140/22T, 160/20T, 180/19T" |
Shaft Inertia: | 210.00 kgm² |
Max Rpm: | 3000 |
Mounting Style: | Tapered Compression Collar Without Keyways |
Temperature Range: | "-30 - 120 °C Nominal, 150 °C Intermittent Peak" |
Ratings: | "CE, And RoHS" |
Finish: | "Bare Aluminum And Black Oxide, Corrosion Resistant Per DIN 50021 Salt 140 Hours, Or Stainless Steel" |
"Options Available: Bore Size, Keyway, Torque Range, Factory Torque Setting, # Of Engagemet Positions, Sealed, And Stainless Steel" | |
Shipping Weight: | 61.8 LB |
