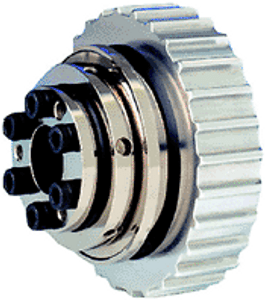

Nexen 976900-1500 MTL Mechanical Torque Limiter MTL2500-2TC-SP-100MM-1500/2000
Nexen
$22,987.00
MTL Mechanical Torque Limiter MTL2500-2TC-SP-100MM-1500/2000
| If You Don't See Exactly What You Need Refer To The Technical Data Sheet In The Left Hand Column Of This Page For The Range Of Options | |
| Features: | See Technical Data Sheet Under Resources In Left Column For Ordering Details |
| Comments: | Can Be Adjusted While Installed With Index Gage And Spanner Wrench A55053 Provided By www.jwwinco.com http://bit.ly/2YNWR9V |
| Comments: | This Unit Fully Disengages The Load Until Manually Reengaged |
| Open Or Enclosed Design: | Open |
| Drive Arrangement: | Coupling |
| Bore Size: | 100/100 mm |
| Bore Style: | "Straight, No Keyways" |
| Maximum Static Clutch Torque: | 2000 Nm |
| Minimum Static Clutch Torque: | 1500 Nm |
| Torque Range: | 1500 - 2000 Nm |
| Factory Torque Setting: | 1500 Nm |
| Backlash: | 0.00 ArcSec |
| Number Of Engagement Positions: | 1 |
| Shaft Inertia: | 315.00 kgcm² |
| Max Rpm: | 3000 |
| Mounting Style: | Tapered Compression Collars Without Keyways |
| Temperature Range: | "-30 - 120 °C Nominal, 150 °C Intermittent Peak" |
| Coupling Brand/Type: | Stainless Steel Bellows |
| Maximum Angular Misalignment: | 2.5° |
| Maximum Lateral Misalignment: | 0.35 mm |
| Torsional Rigidity: | "3,400,000 Nm/Rad" |
| Ratings: | "CE, And RoHS" |
| Finish: | "Bare Aluminum And Black Oxide, Corrosion Resistant Per DIN 50021 Salt 140 Hours, Or Stainless Steel" |
| "Options Available: Bore Size, Keyway, Torque Range, Factory Torque Setting, # Of Engagemet Positions, Sealed, And Stainless Steel" | |
| Shipping Weight: | 63.7 LB |
