Pfannenberg

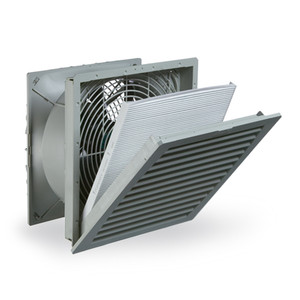

Pfannenberg Pf 22000 Emc Filterfan Thermal Management Filter Fan-Specialty

(No reviews yet) Write a Review
SKU:
11822803055
Condition:
New
Mounting Style:
Side Mount
Color:
RAL 7035 (Lt. Grey)
Material:
self-extinguishing, UL 94 VO injection-molded thermoplastic
Environmental Protection Standard:
Type 12 - fluted filter
Voltages:
24 VDC
Voltage Tolerance:
+/- 10%
Frequency:
DC
Power Consumption (W):
5
SERVICE LIFE L10 (+ 40 ??C):
62,500 h
NOISE LEVEL (EN ISO 3741):
44 dB (A)
CONNECTION TYPE:
cable, 2-core, length 310 mm
BEARING TYPE:
ball bearing
APPROVALS:
UL, cUL, CE, (on request: GOST)
WEIGHT (lb):
1.1
NOMINAL SIZE:
6 in
Width (in):
5.71
Height (in):
5.71
Depth (in):
2.76
CUT-OUT DIMENSIONS (mm):
126 x 126
CUT-OUT DIMENSIONS (in):
4.96 x 4.96
UNIMPEDED AIRFLOW:
38 CFM
FAN AND EXHAUST AIRFLOW:
28 CFM
FILTER MAT QUALITY CLASS:
G4 Fluted Polyester
FILTRATION EFFICIENCY:
0.91
  • Pfannenberg Pf 22000 Emc Filterfan Thermal Management Filter Fan-Specialty
  • Pfannenberg Pf 22000 Emc Filterfan Thermal Management Filter Fan-Specialty
  • Pfannenberg Pf 22000 Emc Filterfan Thermal Management Filter Fan-Specialty
$357.00

Description

PF 22000 Filterfans 4.0?Ö- 6 in X 6 in, Electromagnetic Compatibility, Standard Side Mount, 24 VDC, Light Grey (RAL 7035), 38 CFM, Type 12


Superior metal shielding
Does not use metalized plastics to protect environment
No time consuming scratching off of coatings for good contact
Contact is made via the cut edge of the cut-out for the Filterfans or exhaust filter
Tool-less quick install design for all NEMA enclosure wall thickness (steel, fiberglass, polycarbonate)
Available in multiple sizes and color options

Typical Applications: Electromagnetic sensitive industrial automation enclosures, Electromagnetic sensitive electrical control cabinet
